X991F

Tesla Part Number

1778336-00-A

Connector

DELPHI 13857844

Color

BK

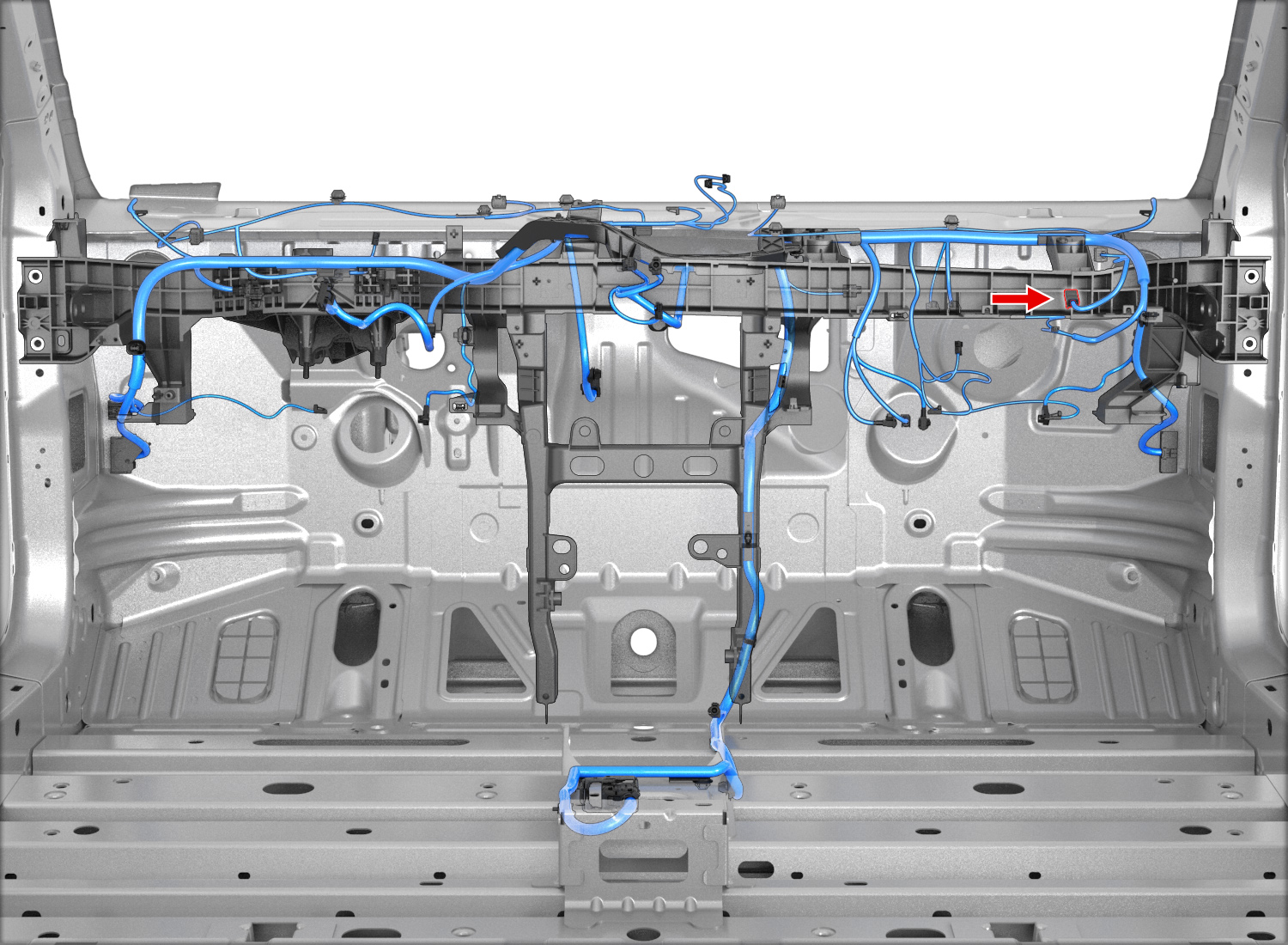

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE/BU	0.35			X558	3
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X545	4
3	SUMITOMO	8100-3625	0.64x0.64F	WH/RD	0.35			X558	5
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X545	6
5	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X545	7
6	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X558	7
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X558	6
8	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X545	5
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X558	4
10	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X545	3
