X991M

Tesla Part Number

1778335-01-A

Connector

DELPHI 13871407

Color

NA

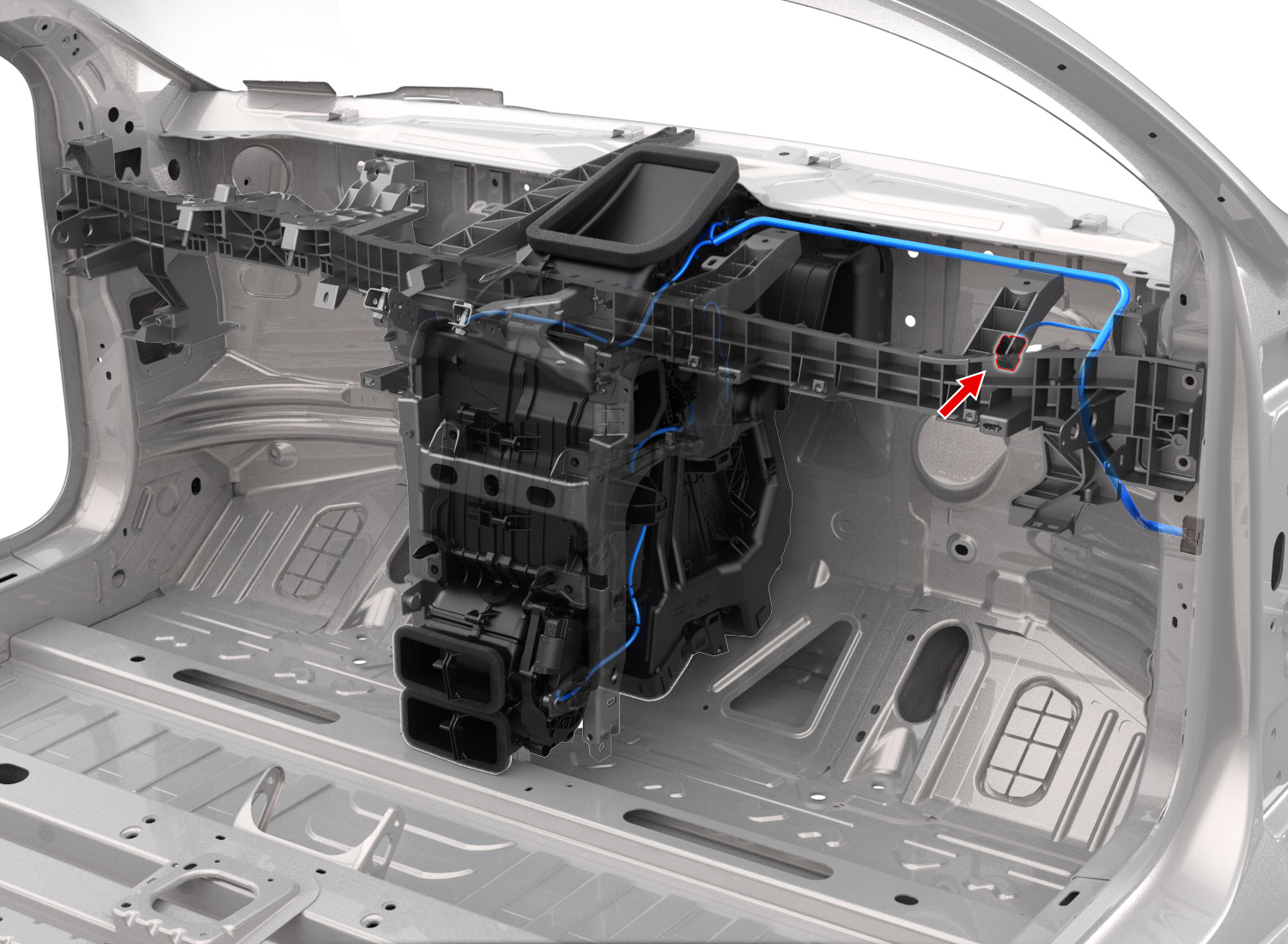

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	YE/BU	0.35			X058	10
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35
3	SUMITOMO	8100-3623	0.64x0.64M	WH/RD	0.35			X058	6
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X058	9
6	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X058	11
7	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35
8	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X058	5
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35
10	SUMITOMO	8100-3623	0.64x0.64M	YE/GN	0.35			X058	8
