G011

Tesla Part Number
1083578-00-A
Connector
SUMITOMO 6189-0323
Color
GY

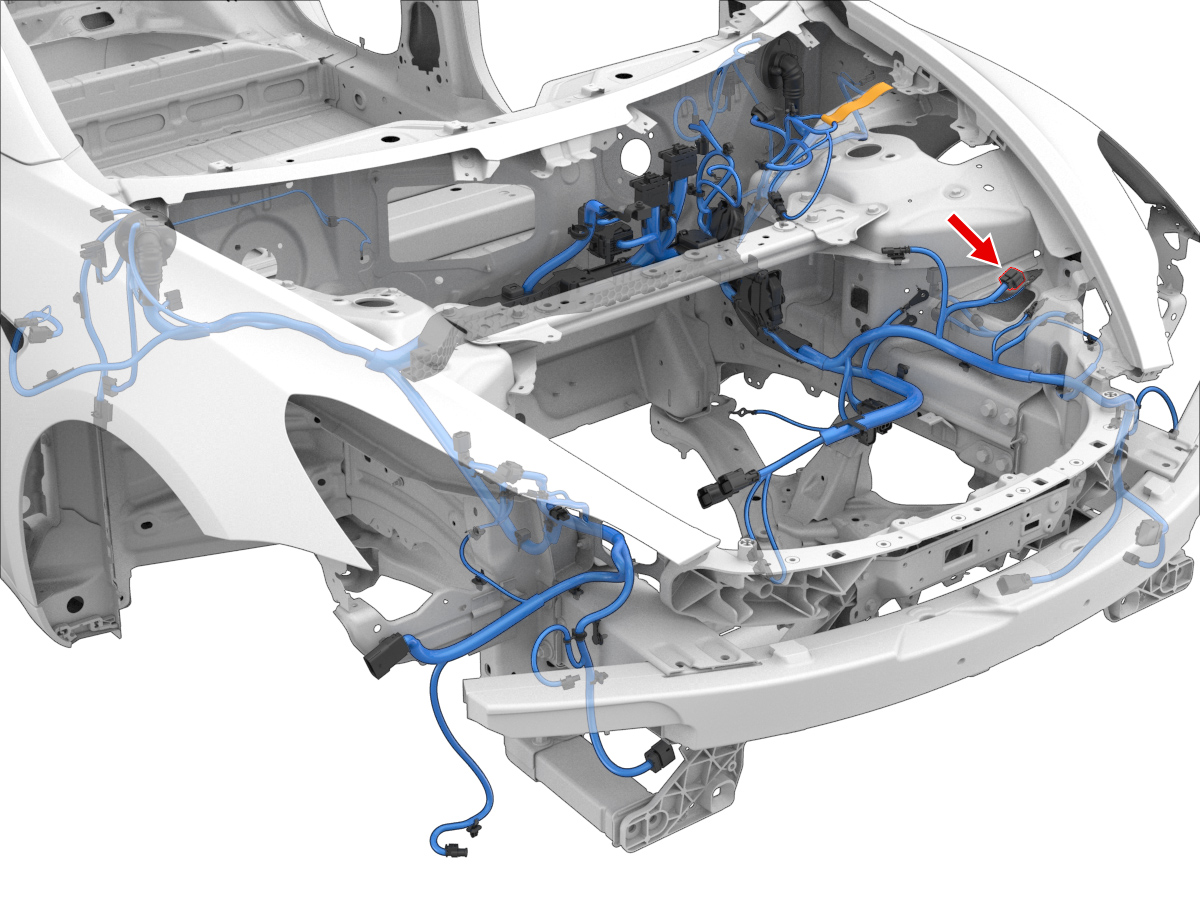

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8100-04602.3x0.64FSBK0.35SUMITOMO7165-0842X2682
2SUMITOMO8100-04602.3x0.64FSBK0.50SUMITOMO7165-0349X911F8
3SUMITOMO8100-04612.3x0.64FSBK1.00SUMITOMO7165-0395X1982
4SUMITOMO8100-04612.3x0.64FSBK1.00SUMITOMO7165-0395X1992
5SUMITOMO8100-04612.3x0.64FSBK0.75SUMITOMO7165-0349X301A1
6SUMITOMO8100-04602.3x0.64FSBK0.50SUMITOMO7165-0349X302A
