G012

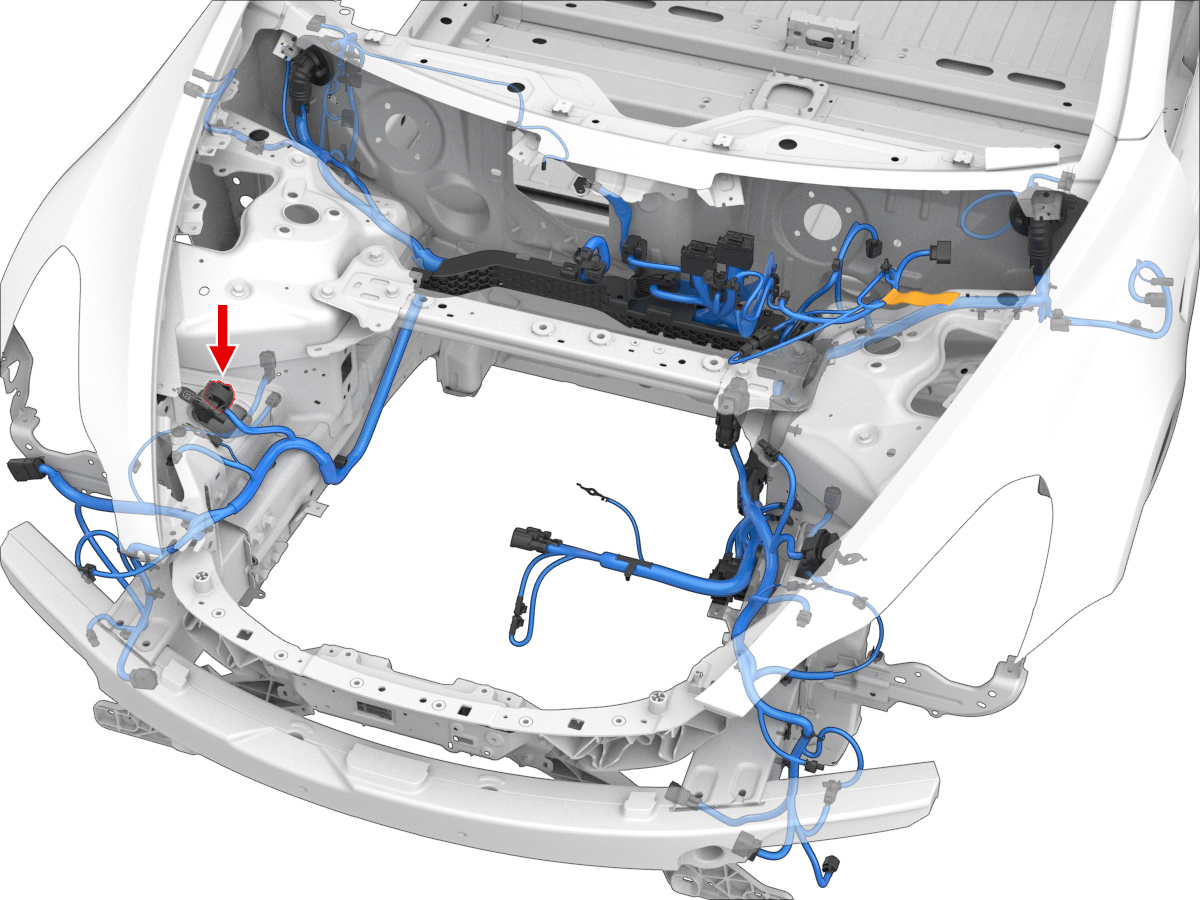

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0460 | 2.3x0.64FS | BK | 0.35 | SUMITOMO | 7165-0842 | X159 | 1 |
| 2 | SUMITOMO | 8100-0461 | 2.3x0.64FS | BK | 1.00 | SUMITOMO | 7165-0395 | X261 | 3 |
| 3 | SUMITOMO | 8100-0462 | 2.3x0.64FS | BK | 2.00 | SUMITOMO | 7165-0351 | ||
| 4 | SUMITOMO | 8100-0462 | 2.3x0.64FS | BK | 2.00 | SUMITOMO | 7165-0351 | X170 | 11 |
| 5 | SUMITOMO | 8100-0462 | 2.3x0.64FS | BK | 2.00 | SUMITOMO | 7165-0351 | X120A | 18 |
| 6 | SUMITOMO | 8100-0462 | 2.3x0.64FS | BK | 2.00 | SUMITOMO | 7165-0351 | X170 | 10 |
