G013_A

Tesla Part Number
GDM6STKAR-L
Connector
SUMITOMO GDM6STKAR-L
Color
SN

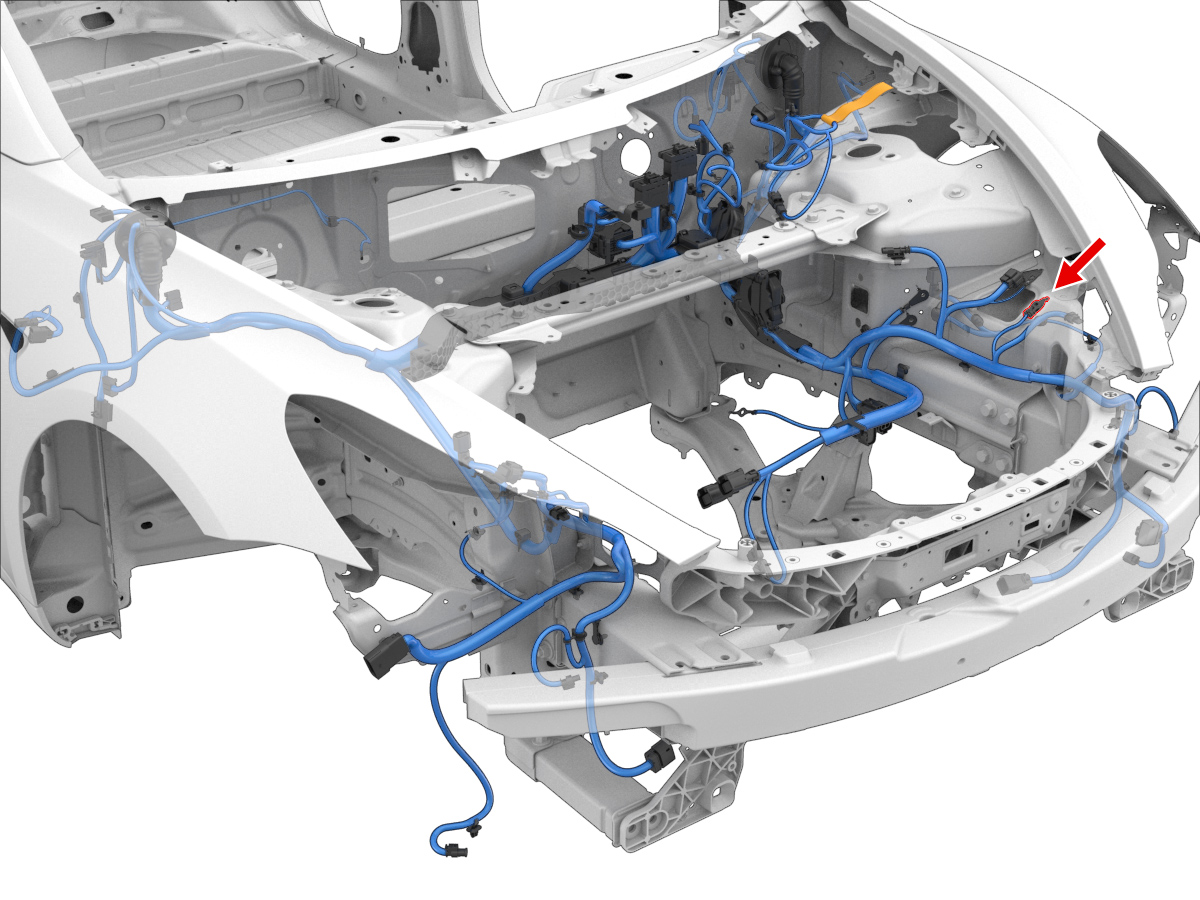

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8110-4155M6RING-LBK1.50X15138
