G032

Tesla Part Number

1549185-00-A

Connector

SUMITOMO 6098-8536

Color

NA

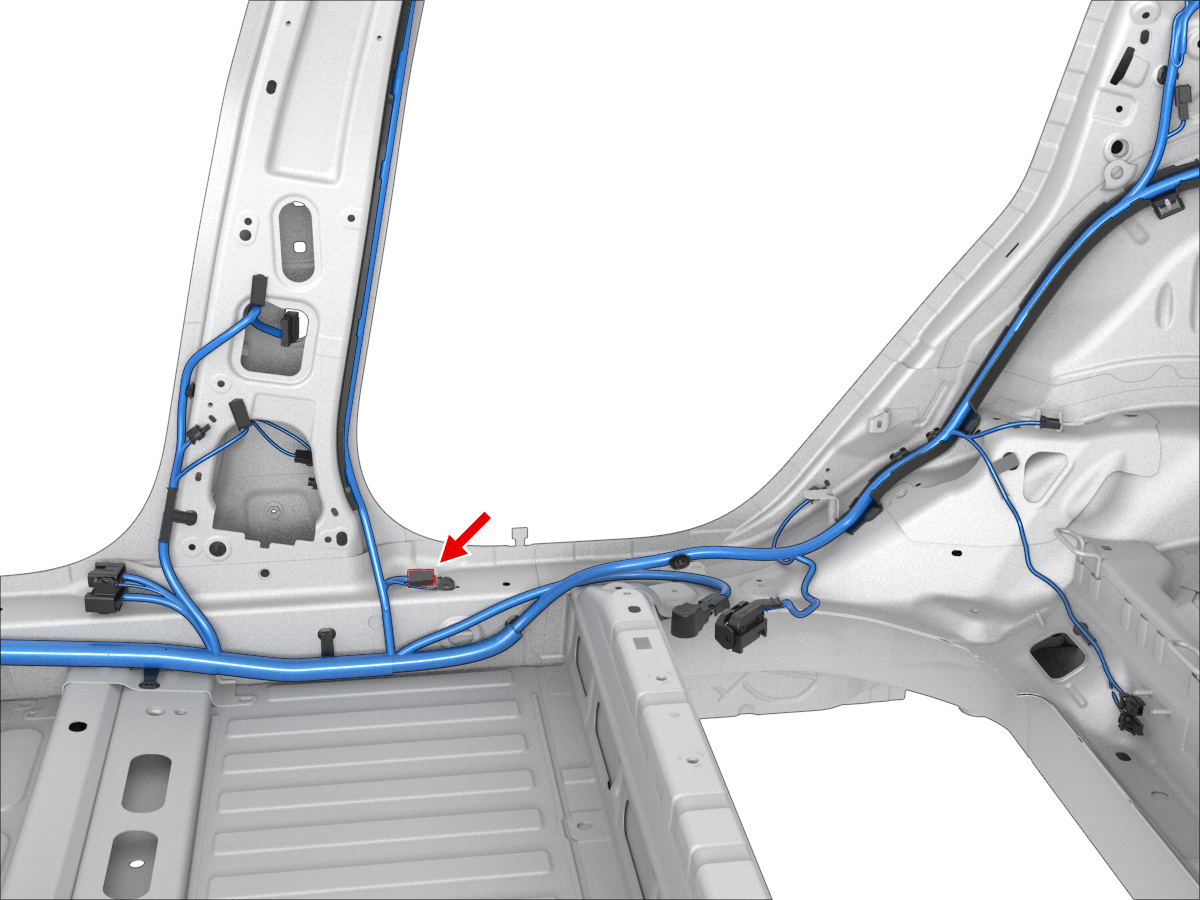

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X098	9
2	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X494	2
3	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X952M	14
4	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X677	1
5	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X272	1
6	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X168A	1
7	unused
8	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X179	20
9	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X562	4
10	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X297	2
11	unused
12	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X970M	7
