G041

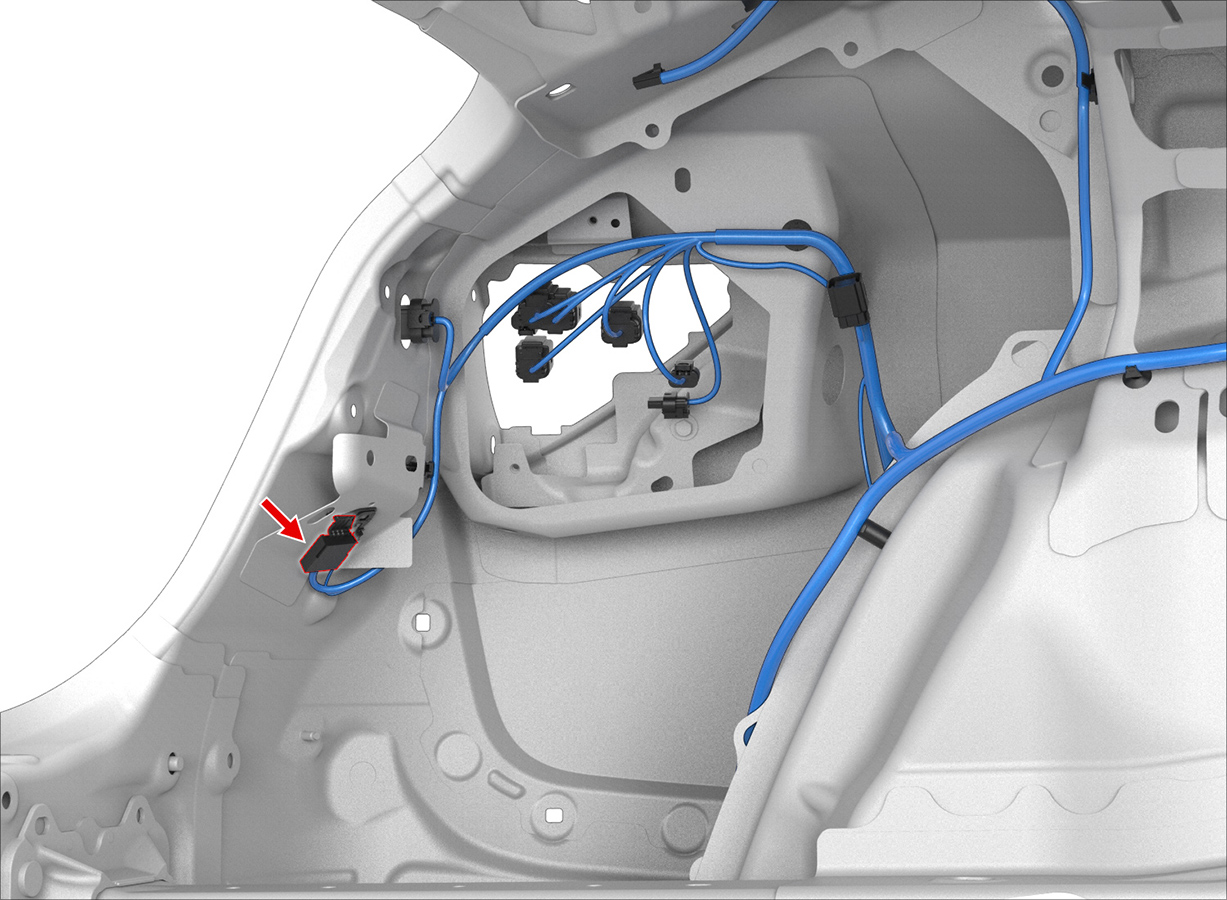

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X497 | 3 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 1.50 | X950M | 12 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X096 | 9 | ||
| 5 | unused | ||||||||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X296 | 2 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X270 | 1 | ||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
