X031

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

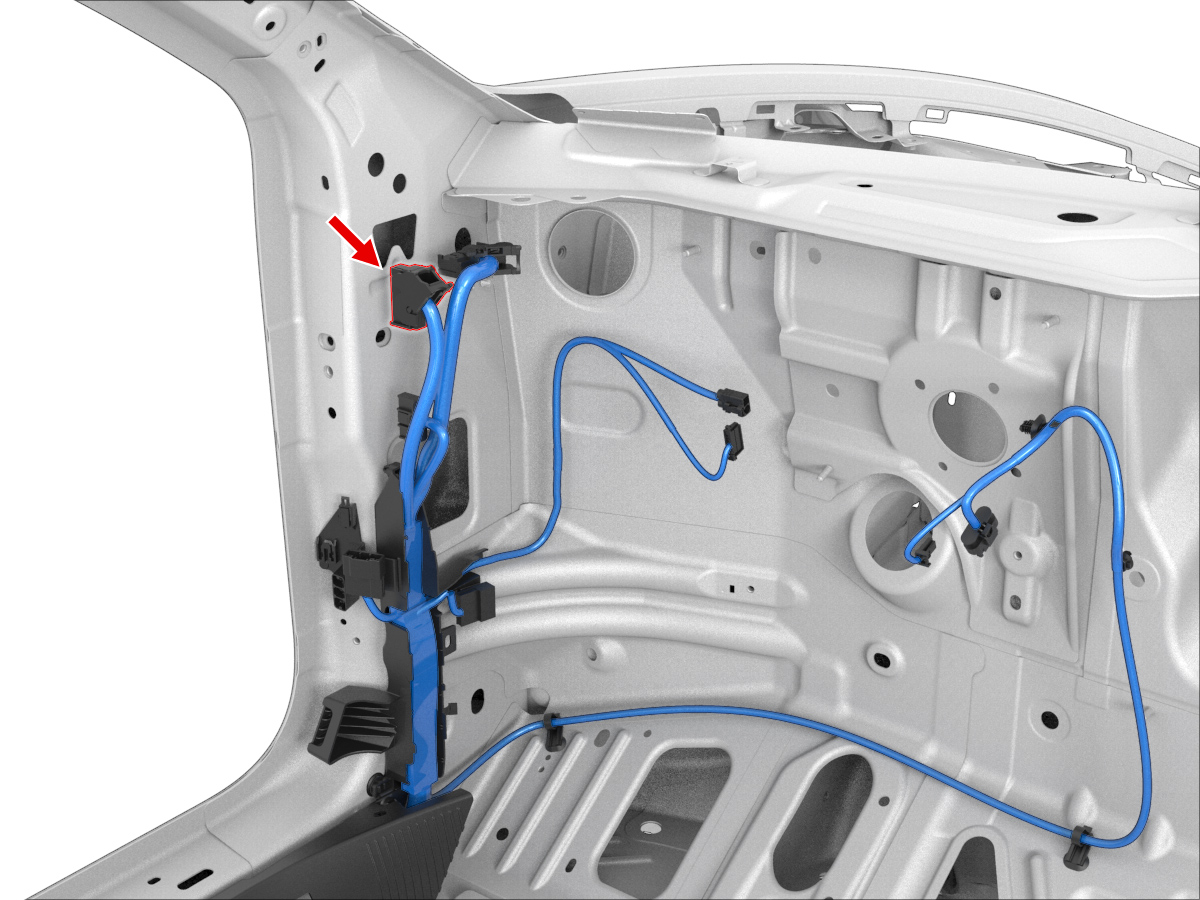

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X924M	1
2	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X162	1
3	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X930F	1
4	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X924M	10
5	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X930F	15
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X685	1
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924M	16
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X924M	2
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X296	1
10	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X270	2
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X270	3
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X270	5
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X950M	4
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X950M	5
15	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X924M	12
16	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X685	2
17	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X162	2
18	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X930F	26
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X924M	9
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X950M	10
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X930F	6
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X924M	14
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X924M	7
25	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X168	2
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X686	9
27	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X686	7
28	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X686	8
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X909M	16
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X909M	17
31	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X353	8
32	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X353	5
33	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X936F	1
34	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00			X936F	15
35	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X936F	18
36	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X936F	4
37	unused
38	unused
39	unused
40	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X673	2
41	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X685	4
42	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X936F	22
43	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X936F	10
44	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	72
45	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	71
