X037

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

WH

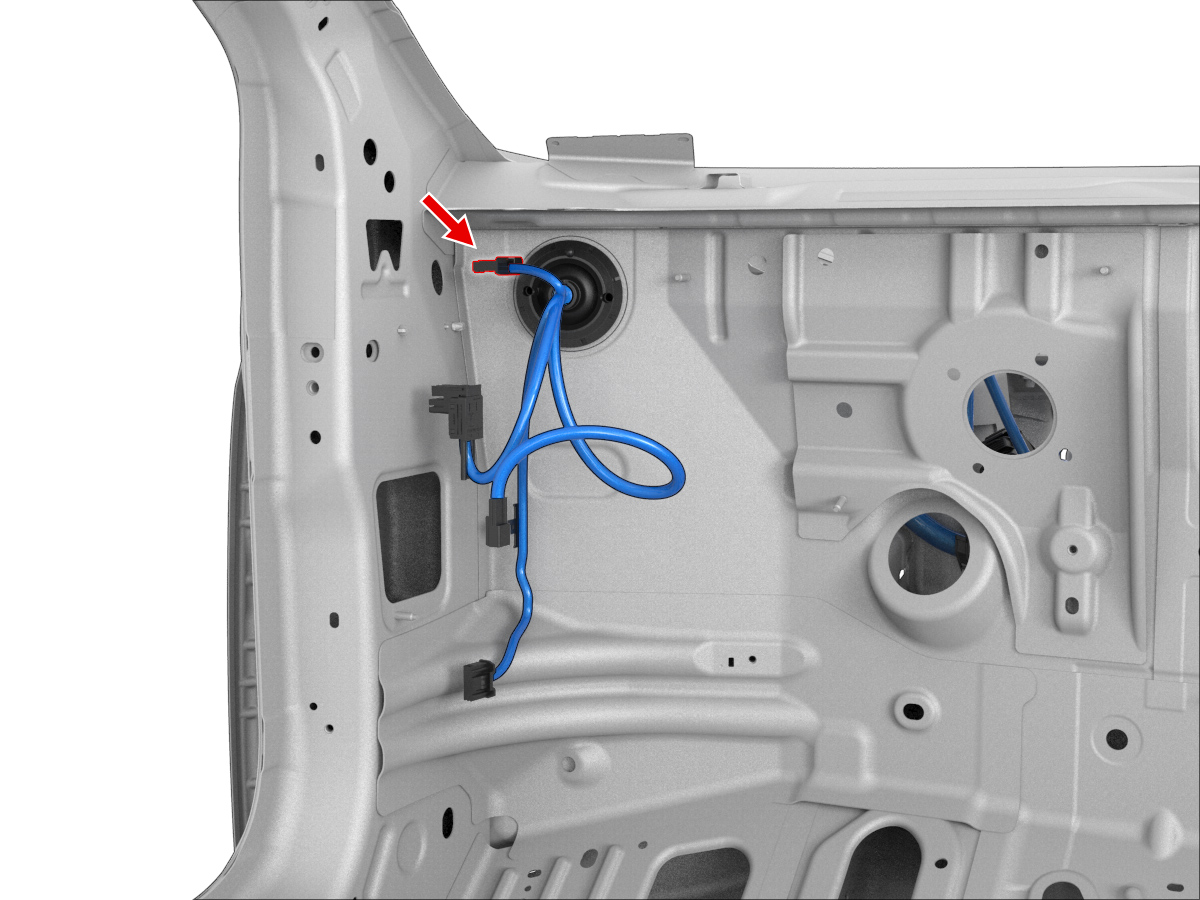

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X010	33
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X010	18
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X202	1
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X202	2
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X083	1
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X170	2
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X170A	1
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X121A	9
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X121	10
16	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X057	9
17	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X057	8
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X203	1
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X203	2
22	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X083	3
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X083	2
24	unused
25	unused
26	unused
27	unused
28	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X908F	10
