X039

Tesla Part Number

1048099-03-A

Connector

YAZAKI 7287-1918-90

Color

BU

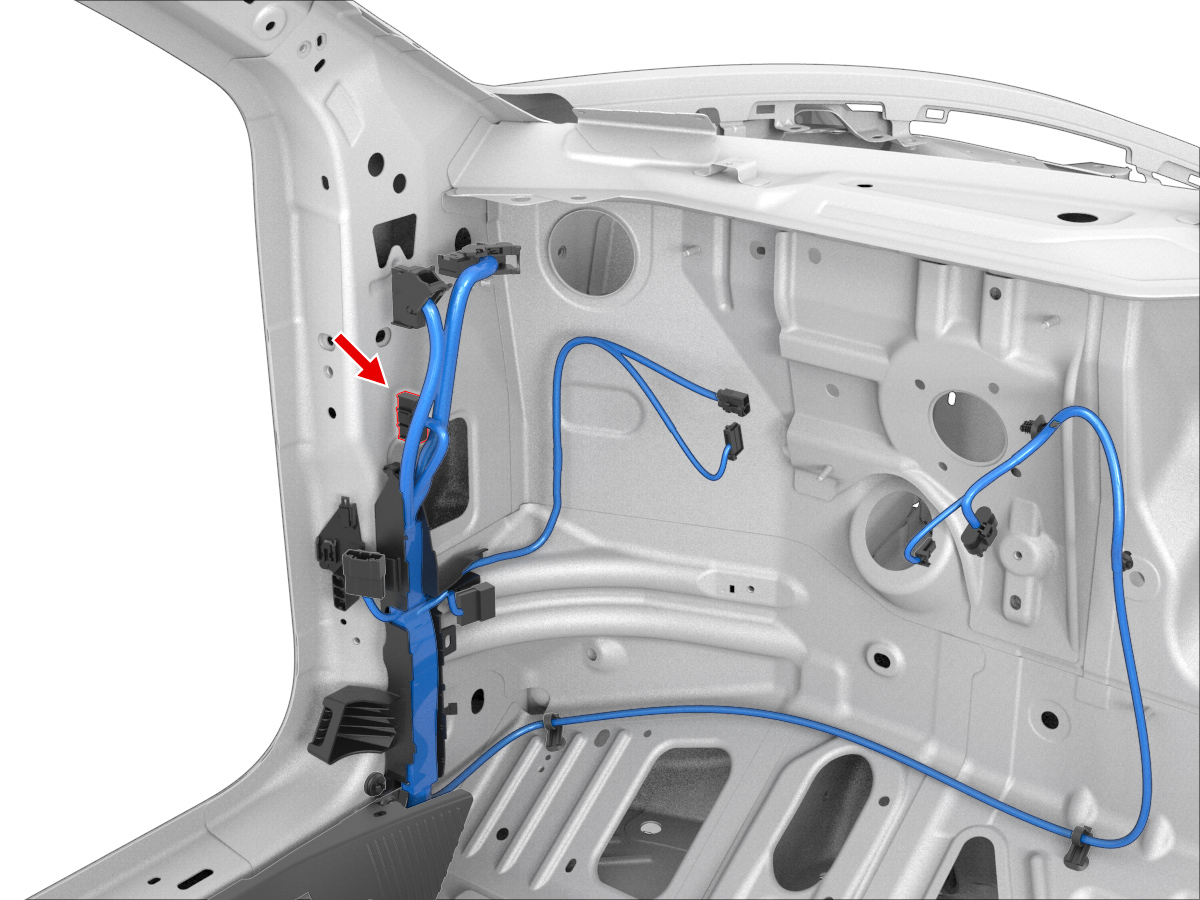

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X686	10
3	unused
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X935F	11
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X353	1
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X353	2
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X353	3
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X353	4
14	unused
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	unused
