X052

Tesla Part Number

1090045-00-A

Connector

SUMITOMO 6098-8119

Color

GY

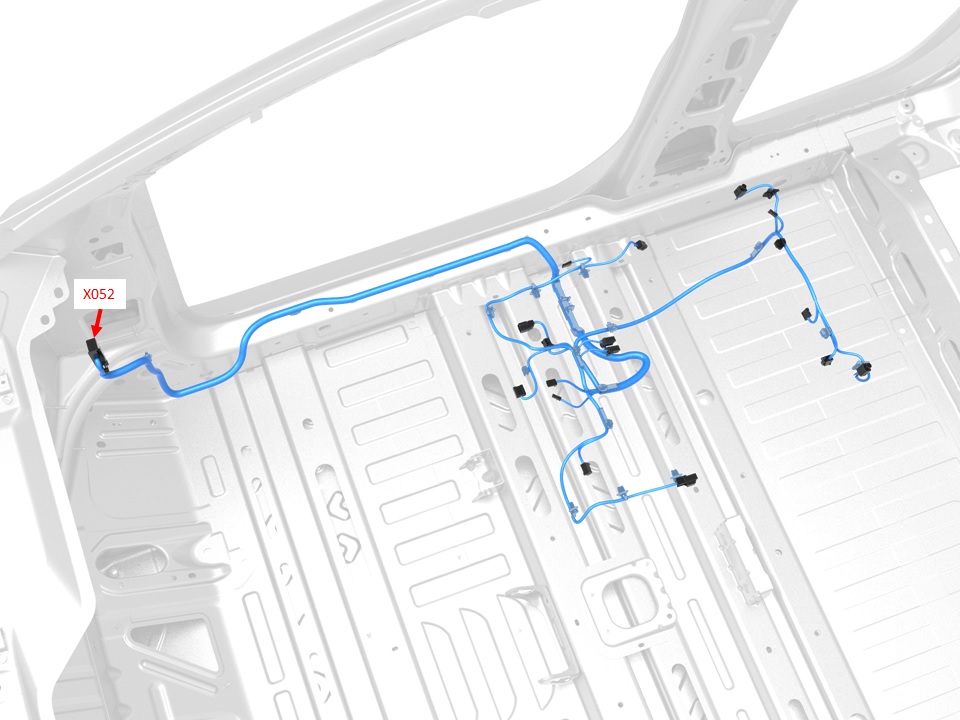

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X614	4
5	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X613	2
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X618	2
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X216	1
8	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X216	2
9	unused
10	unused
11	unused
12	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X640	1
13	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X616	1
14	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X238	1
15	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X238	2
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X617	3
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X652	4
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X619	6
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X652	3
23	unused
24	unused
25	unused
26	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00			X614	5
27	SUMITOMO	8240-0213	1.5x0.64F	BU	1.00			X614	1
28	unused
29	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X613	3
30	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X613	1
31	unused
32	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X624	2
33	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X624	1
34	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X619	1
35	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X617	1
36	SUMITOMO	8240-0215	1.5x0.64F	TN	0.35			X621	4
37	unused
38	unused
39	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X661	2
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X661	1
41	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X661	3
42	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X622	1
43	unused
44	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X652	2
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X652	1
46	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X621	3
47	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X621	1
48	unused
49	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X618	3
50	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75			X618	1
51	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X617	2
52	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X616	2
