X053A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

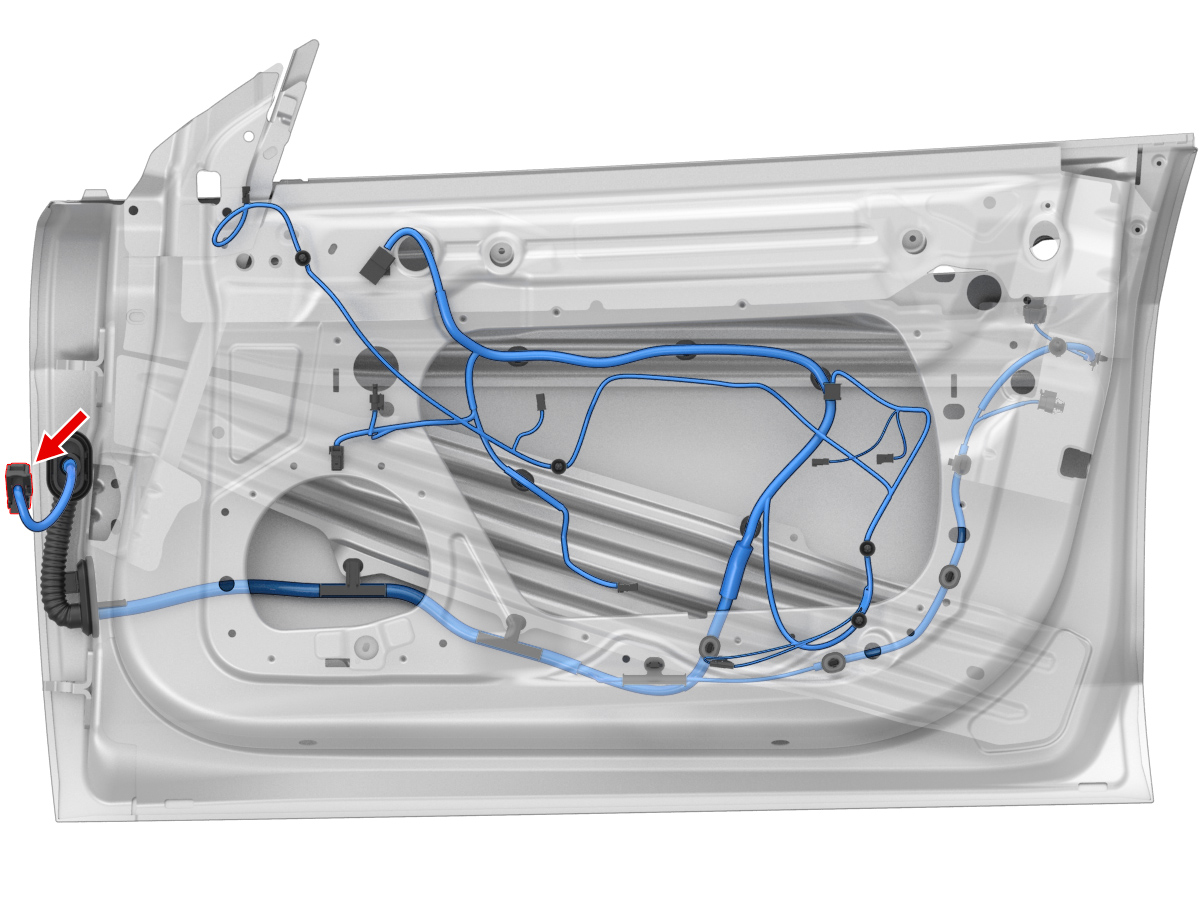

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X406	10
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X406	1
3	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X406	14
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X205	2
5	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X205	1
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X403	3
8	unused
9	unused
10	unused
11	unused
12	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X395	3
13	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13			X395	1
14	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X404	5
15	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X406	9
16	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X406	3
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X406	2
18	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X399	1
19	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X396	2
20	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X406	4
21	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X396	3
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X410	1
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X397	2
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X397	4
26	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X395	4
27	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X395	2
28	SUMITOMO	8240-0213	1.5x0.64F	BK	1.00
29	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00			X577	1
30	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X577	2
31	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X575	1
32	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X575	2
33	unused
34	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X403	5
35	SUMITOMO	8240-0214	1.5x0.64F	TN	1.50			X403	1
