X058

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

WH

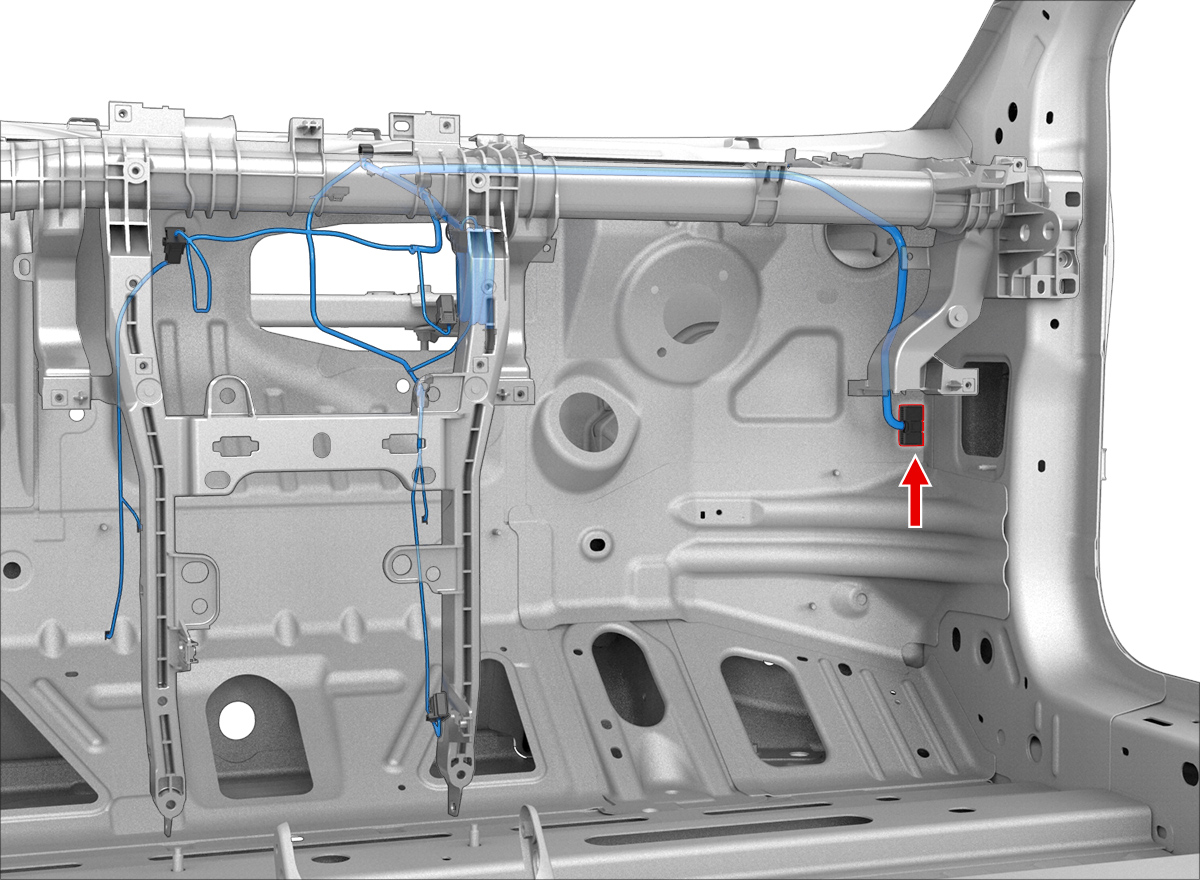

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	OG/BU	0.35			X548	2
2	SUMITOMO	8100-3625	0.64x0.64F	RD/GY	0.35			X553	2
3	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X556	2
4	SUMITOMO	8100-3625	0.64x0.64F	GY/BK	0.35			X554	2
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X552	5
6	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.35			X555	5
7	SUMITOMO	8100-3625	0.64x0.64F	BN/BU	0.35			X549	2
8	SUMITOMO	8100-3625	0.64x0.64F	YE/BN	0.35			X552	7
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X552	3
10	SUMITOMO	8100-3625	0.64x0.64F	YE/BU	0.35			X555	7
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X555	3
12	unused
13	unused
14	unused
15	unused
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X551	2
18	unused
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35
21	unused
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X553	5
24	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X553	6
25	SUMITOMO	8100-3625	0.64x0.64F	GN/OG	0.35			X556	5
26	SUMITOMO	8100-3625	0.64x0.64F	BU/GY	0.35			X556	6
27	SUMITOMO	8100-3625	0.64x0.64F	OG/YE	0.35			X554	5
28	SUMITOMO	8100-3625	0.64x0.64F	OG/WH	0.35			X554	6
