X059

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

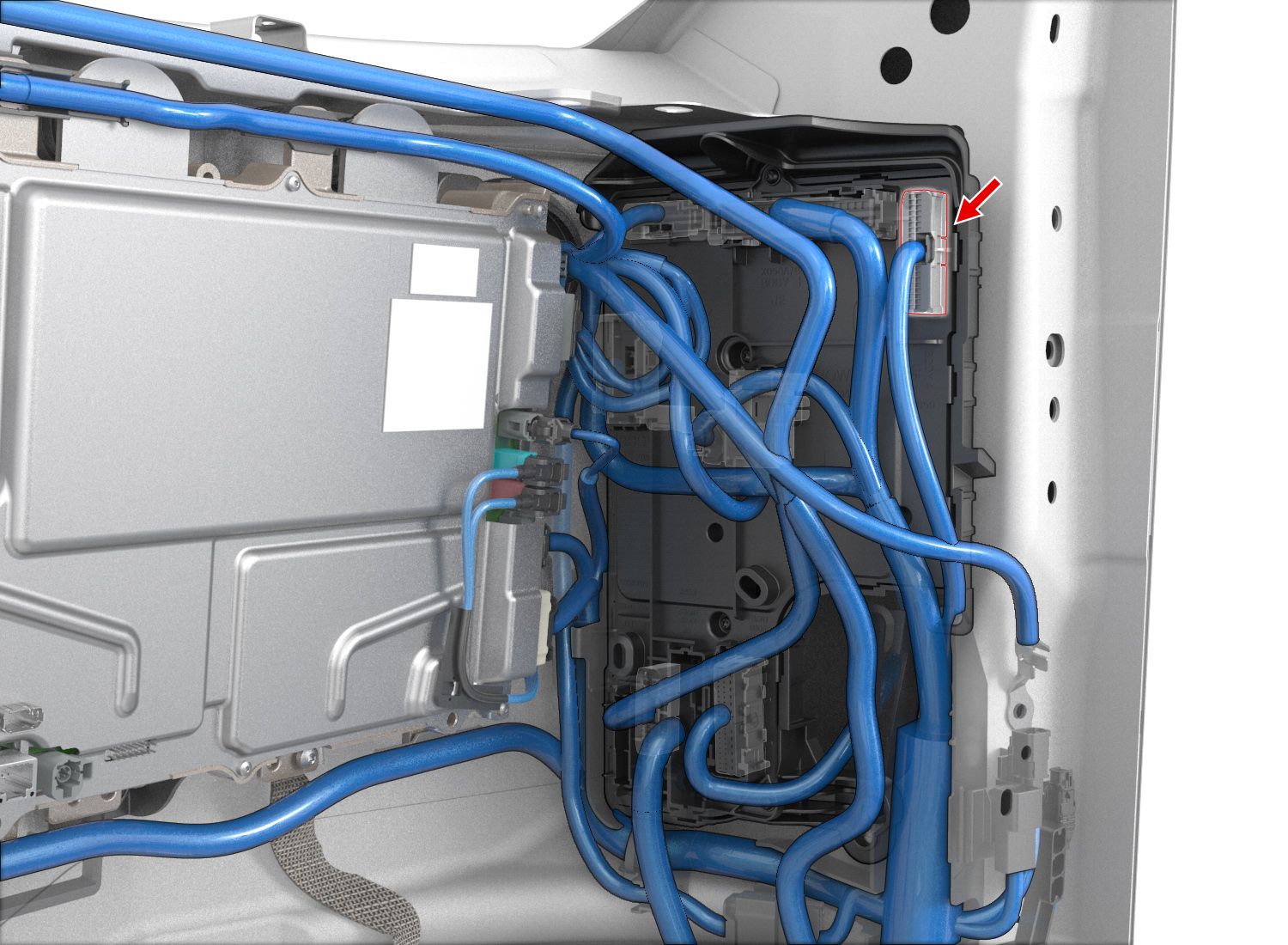

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	9
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X954M	10
11	unused
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X908M	15
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	18
21	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	19
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	17
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	16
24	unused
25	unused
26	unused
27	unused
28	unused
29	unused
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X908M	10
31	unused
32	unused
33	unused
34	unused
35	unused
36	unused
