X083

Tesla Part Number
1045248-02-A
Connector
FEP 42511700
Color
BK

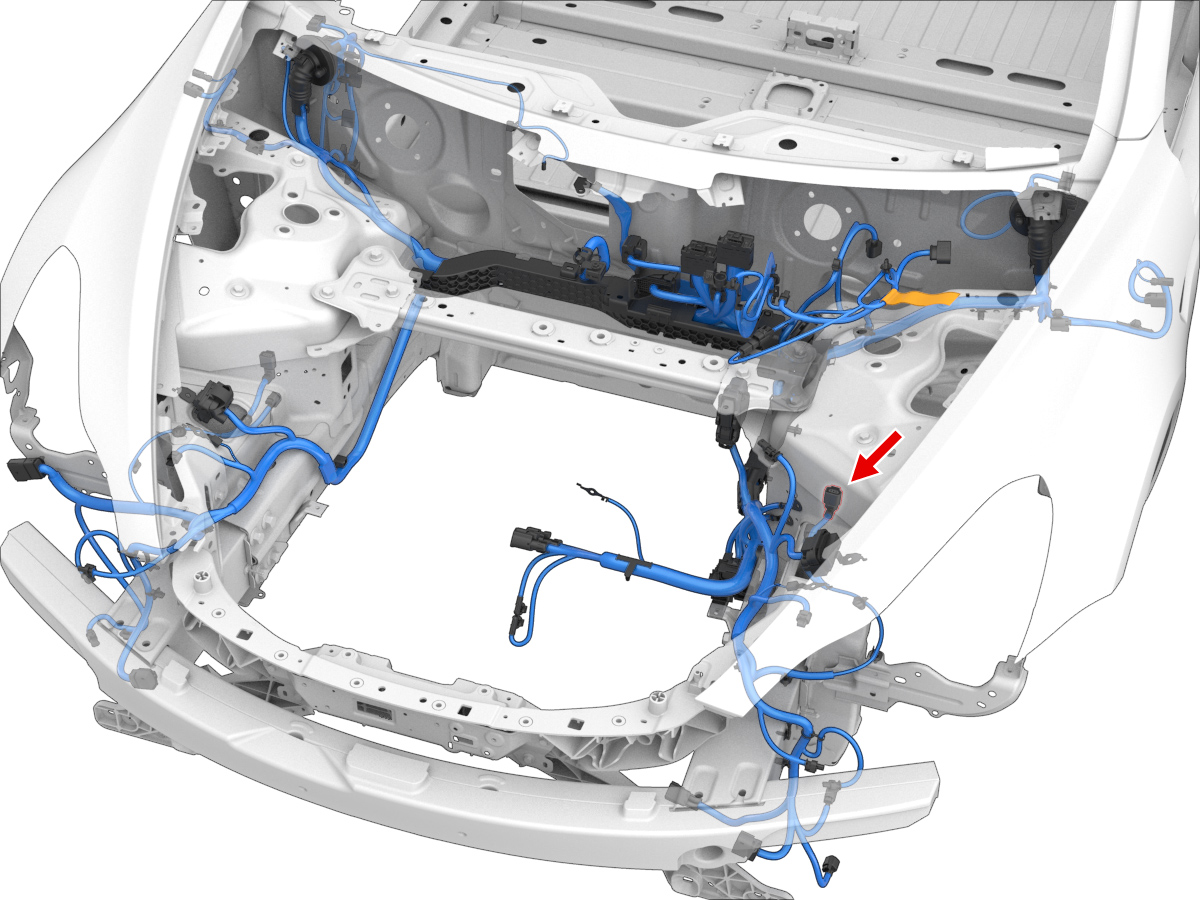

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1564324-21.5x0.6FSBN0.35AMP964971-1X0379
2AMP1564324-21.5x0.6FSBU0.35AMP964971-1X03723
3AMP1564324-21.5x0.6FSGY0.35AMP964971-1X03722
