X167A

Tesla Part Number

1496690-00-A

Connector

DELPHI 35020435

Color

BK

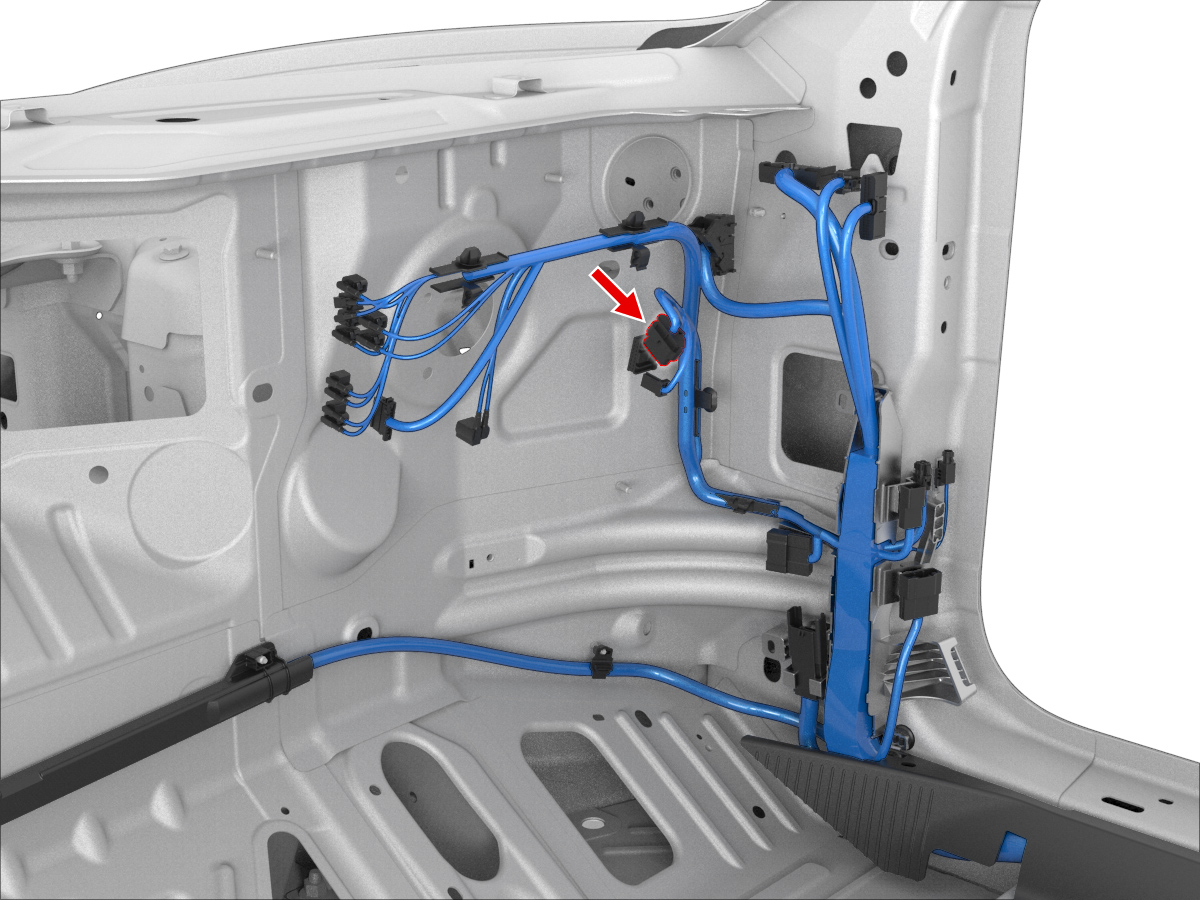

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-2	1.2x0.6FS	BN	0.35	AMP	967067-2	X936M	9
2	AMP	7-1452665-2	1.2x0.6FS	GN	0.35	AMP	967067-2	X936M	16
3	AMP	7-1452665-2	1.2x0.6FS	VT	0.35	AMP	967067-2	X936M	21
4	AMP	7-1452665-2	1.2x0.6FS	YE	0.35	AMP	967067-2	X936M	8
5	AMP	7-1452665-2	1.2x0.6FS	GY	0.35	AMP	967067-2	X936M	6
6	AMP	7-1452665-2	1.2x0.6FS	RD	0.35	AMP	967067-2	X936M	2
