X172A

Tesla Part Number

1086373-00-A

Connector

AMP 2177587-1

Color

BK

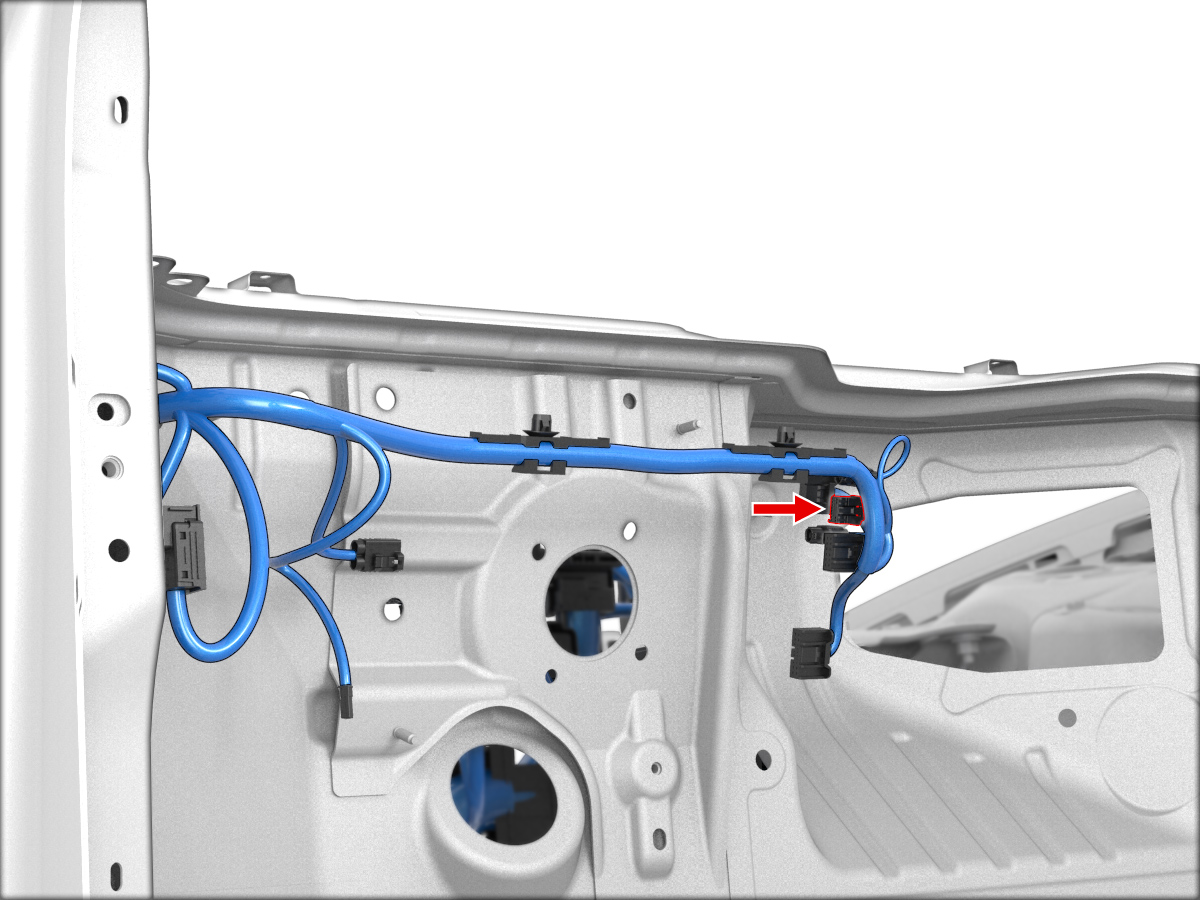

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	AMP	2-1703930-1	0.50x0.40F	TN	0.35			X909F	5
4	AMP	2-1703930-1	0.50x0.40F	RD	0.35			X909F	6
5	unused
6	unused
7	AMP	2-1703930-1	0.50x0.40F	YE	0.35			X185A	1
8	AMP	2-1703930-1	0.50x0.40F	BU	0.35			X185A	2
9	AMP	2-1703930-1	0.50x0.40F	WH	0.35			X185A	3
10	AMP	2-1703930-1	0.50x0.40F	VT	0.35			X185A	4
11	AMP	1-1703930-1	0.50x0.40F	YE	0.13			X908F	14
12	AMP	1-1703930-1	0.50x0.40F	GY	0.13			X908F	13
