X173A

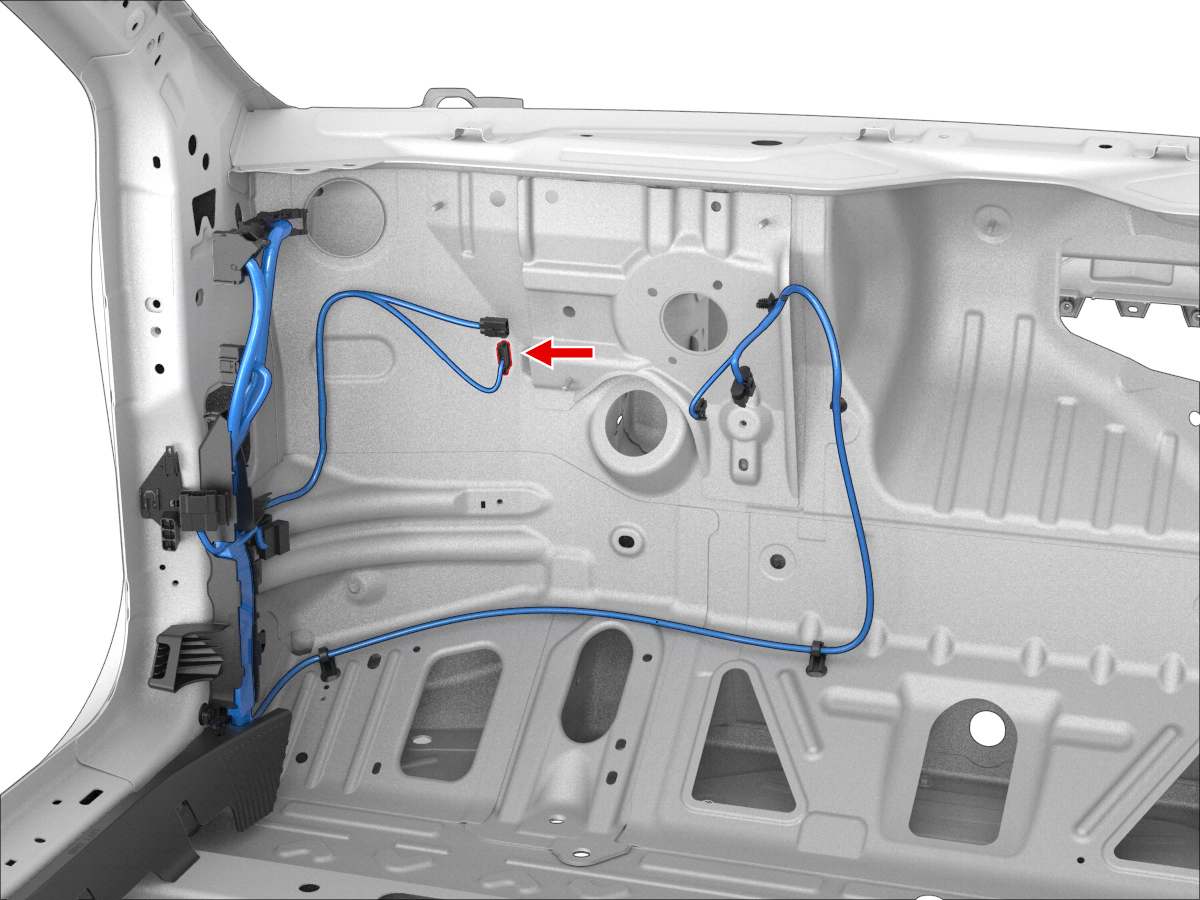

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | GN | 0.35 | X909M | 2 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | VT | 0.35 | X909M | 1 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X935F | 8 | ||
| 7 | unused | ||||||||
| 8 | AMP | 5-928999-1 | 0.63x0.63F | YE | 0.35 | X935F | 7 | ||
