X222

Tesla Part Number
1610782-01-A
Connector
DELPHI 35191323
Color
GN

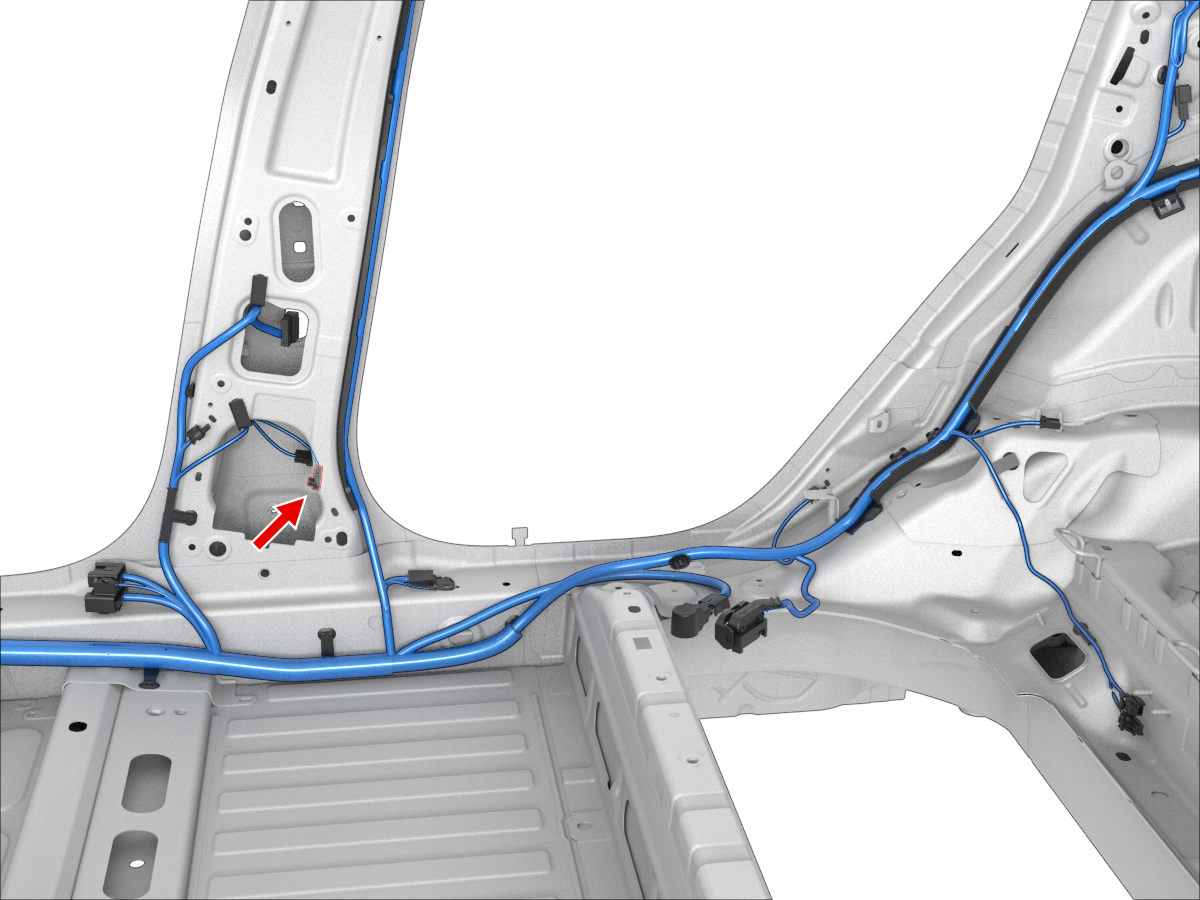

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SGN0.35X935M14
2GENPIA-SRS-SWH0.35X935M15
