X373

Tesla Part Number
1046183-00-A
Connector
AMP 1379217-3
Color
BK

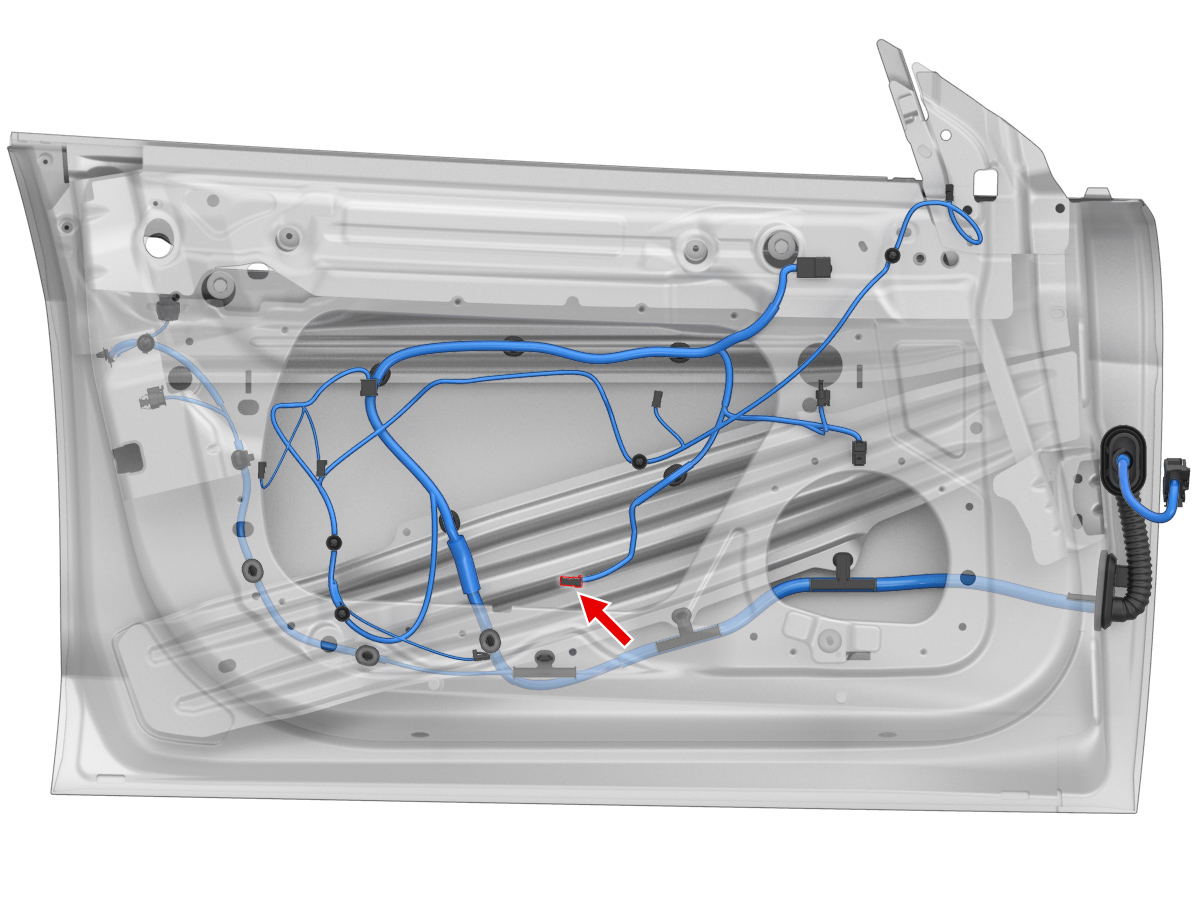

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968075-22.8x0.6FTN1.50X033A34
2AMP5-928999-10.63x0.63FGN0.35X033A1
3AMP5-928999-10.63x0.63FBK0.35X033A24
4AMP5-928999-10.63x0.63FBU0.35X033A14
5AMP968075-22.8x0.6FRD1.50X033A35
