X404

Tesla Part Number
1042476-00-A
Connector
SUMITOMO 6098-3802
Color
WH

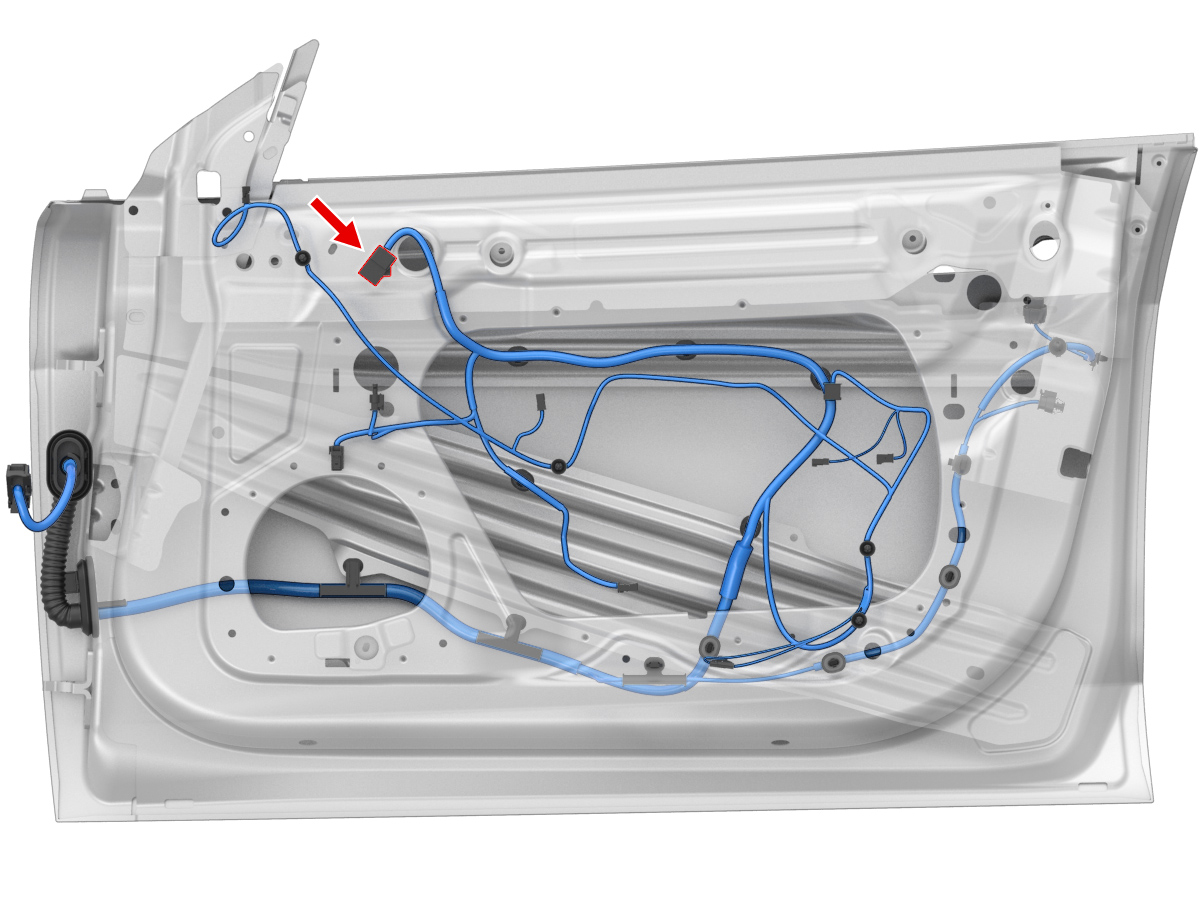

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8230-48780.64x0.64MVT0.13X053A15
2unused
3SUMITOMO8230-48780.64x0.64MWH0.13X053A16
4unused
5SUMITOMO8230-48780.64x0.64MBU0.13X053A14
