X406

Tesla Part Number

1042579-02-A

Connector

SUMITOMO 6098-3879

Color

BU

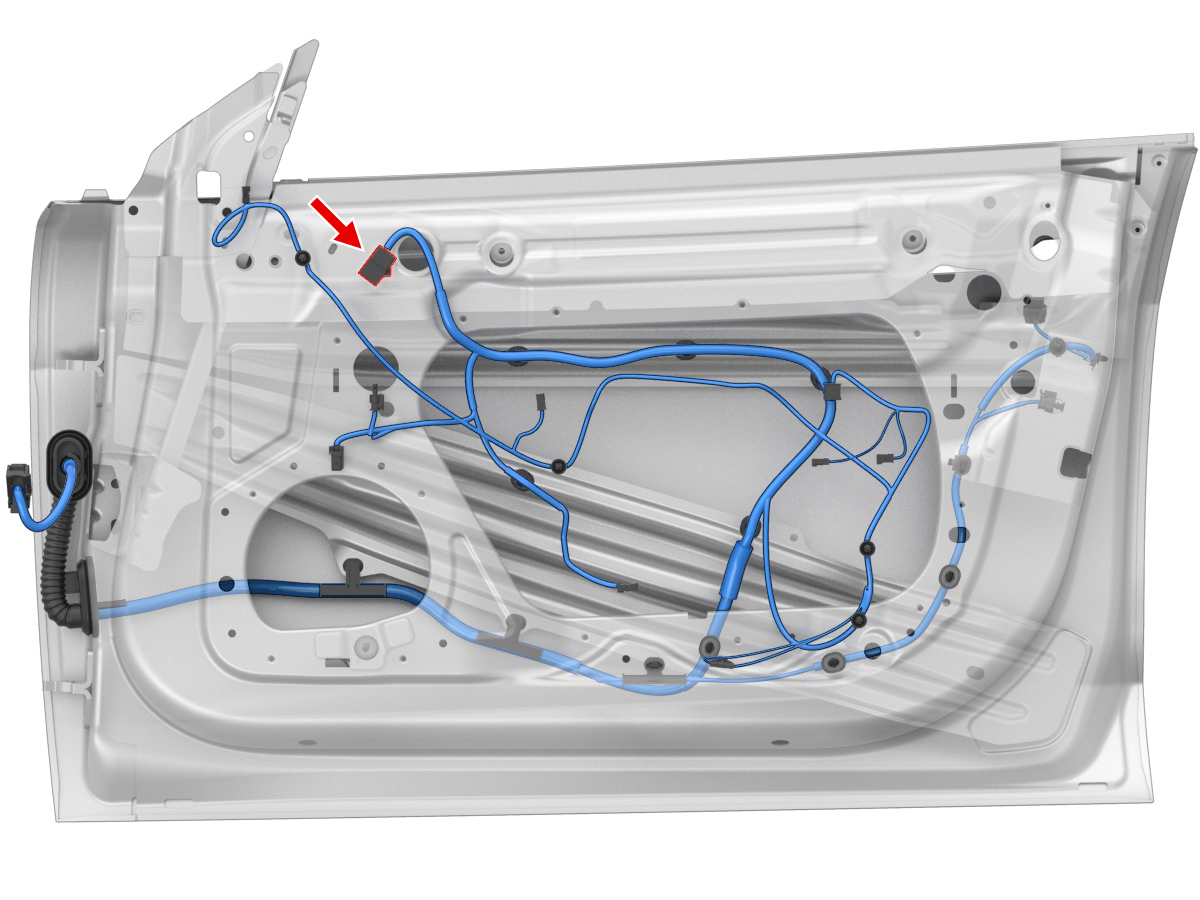

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X053A	2
2	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X053A	17
3	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X053A	16
4	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13			X053A	20
5	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X053B	1
6	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50
7	unused
8	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13			X053A	14
9	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13			X053A	15
10	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X053A	1
11	unused
12	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X053B	2
13	unused
14	SUMITOMO	8230-4878	0.64x0.64M	BN	0.13			X053A	3
