X596

Tesla Part Number
1015004-01-B
Connector
DELPHI 13649799
Color
WH

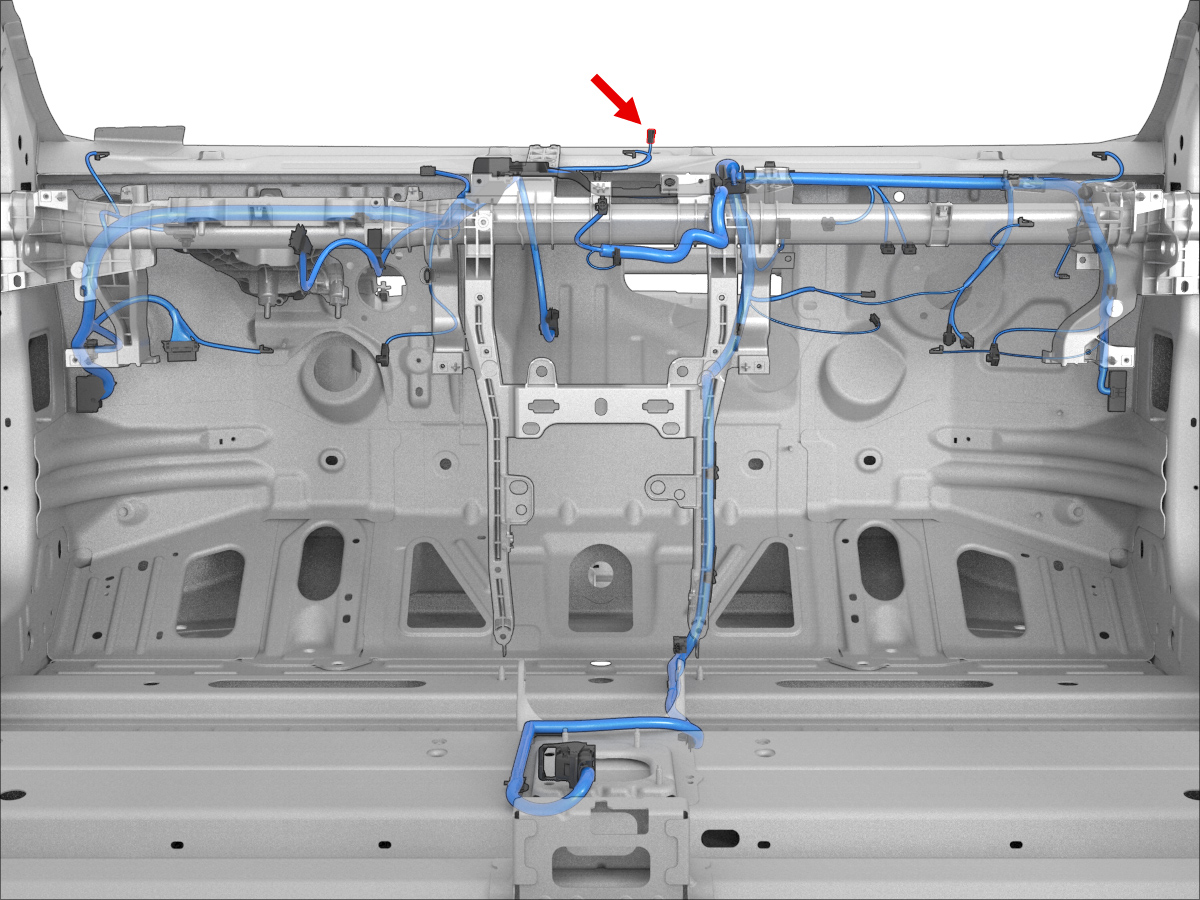

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806350.64x0.64FRD0.75
2DELPHI135806350.64x0.64FBU0.75
