X686

Tesla Part Number

1042592-00-A

Connector

SUMITOMO 6098-5704

Color

WH

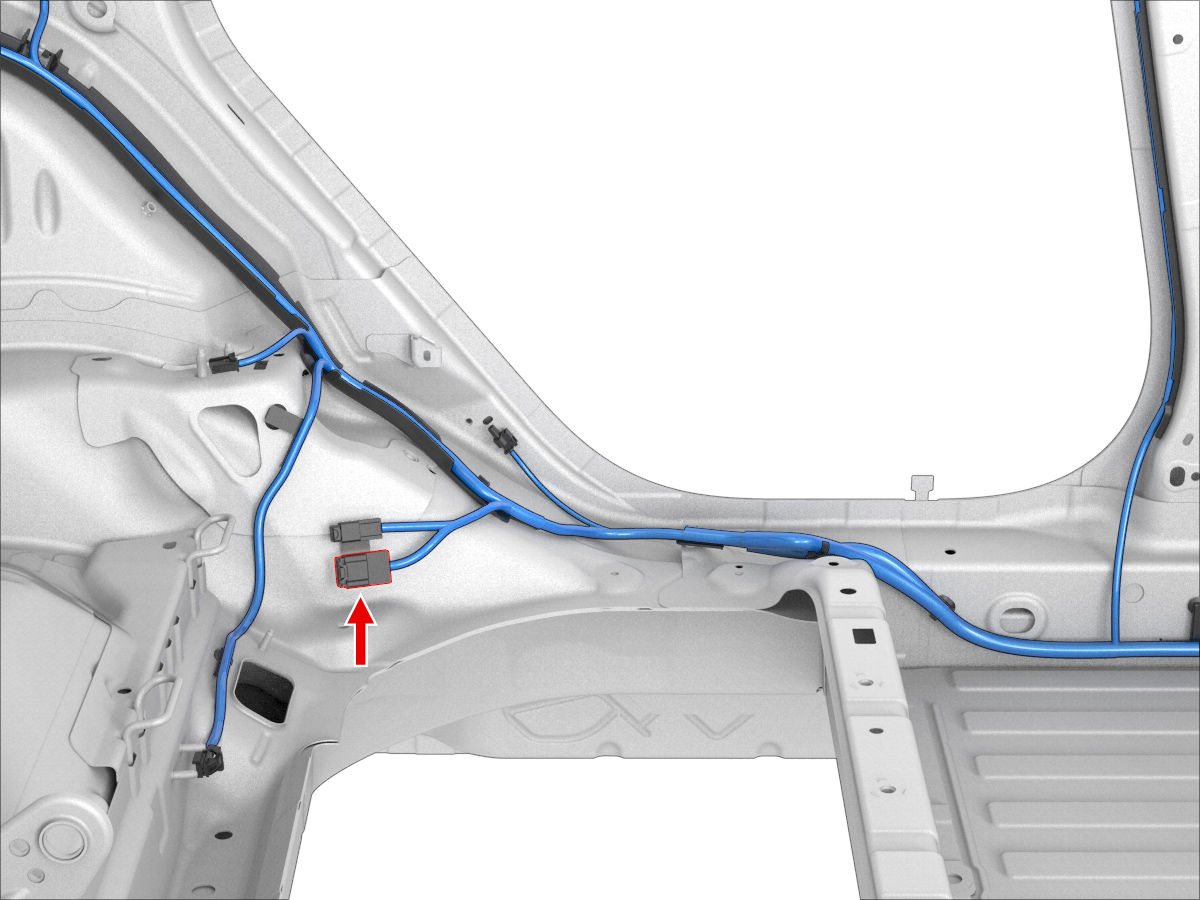

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X030A	31
2	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X030A	30
3	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X030A	29
4	unused
5	unused
6	unused
7	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X031	27
8	SUMITOMO	8230-4925	1.5x0.6M	YE	0.35			X031	28
9	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X031	26
10	SUMITOMO	8230-4925	1.5x0.6M	GY	0.35			X039	2
11	unused
12	SUMITOMO	8230-4923	1.5x0.6M	BK	1.50			G031	7
