X695

Tesla Part Number
1020698-02-A
Connector
AMP 3-968700-1
Color
BU

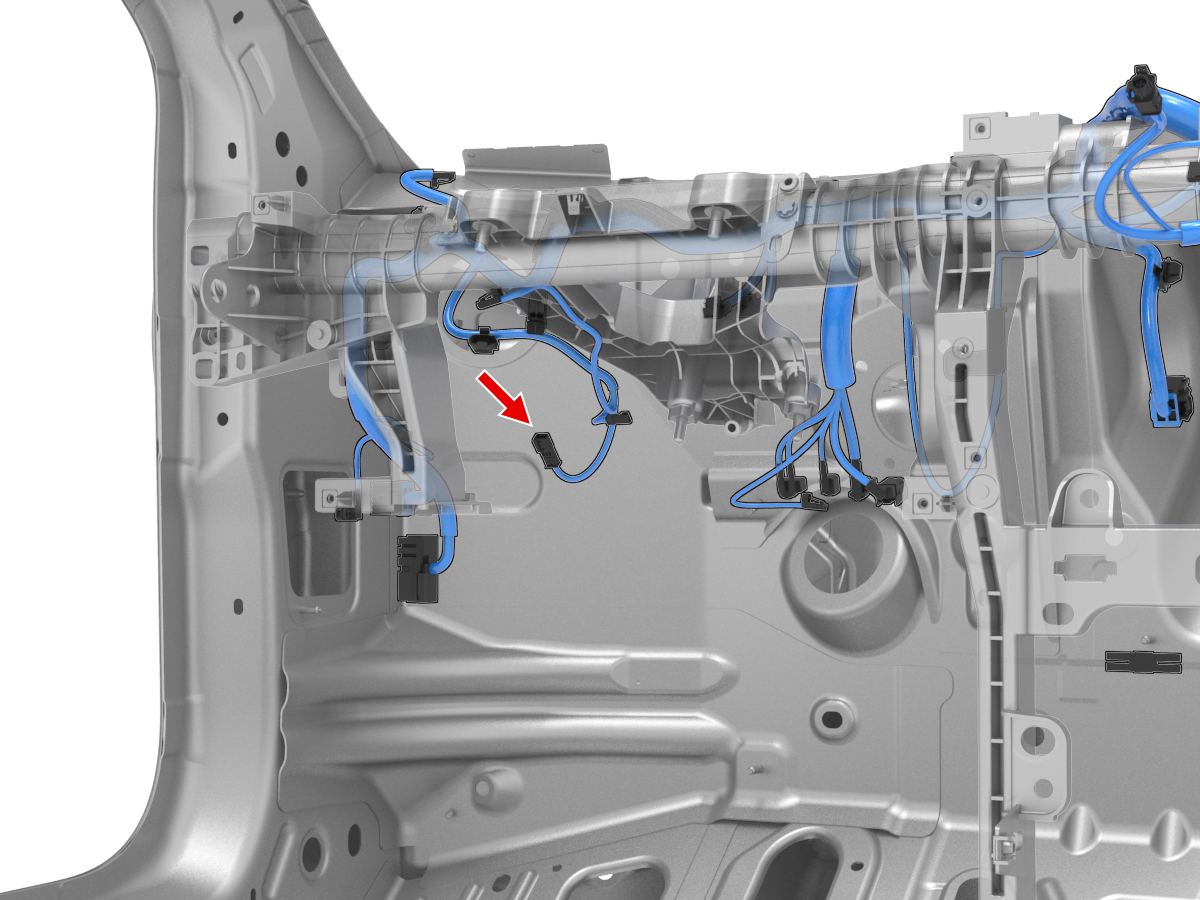

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP6-928918-10.63x0.63MGN0.35X035_134
2BK0.50
3AMP6-928918-10.63x0.63MRD0.35X035_133
