X901F

Tesla Part Number

1516177-00-A

Connector

DELPHI 15514473

Color

BK

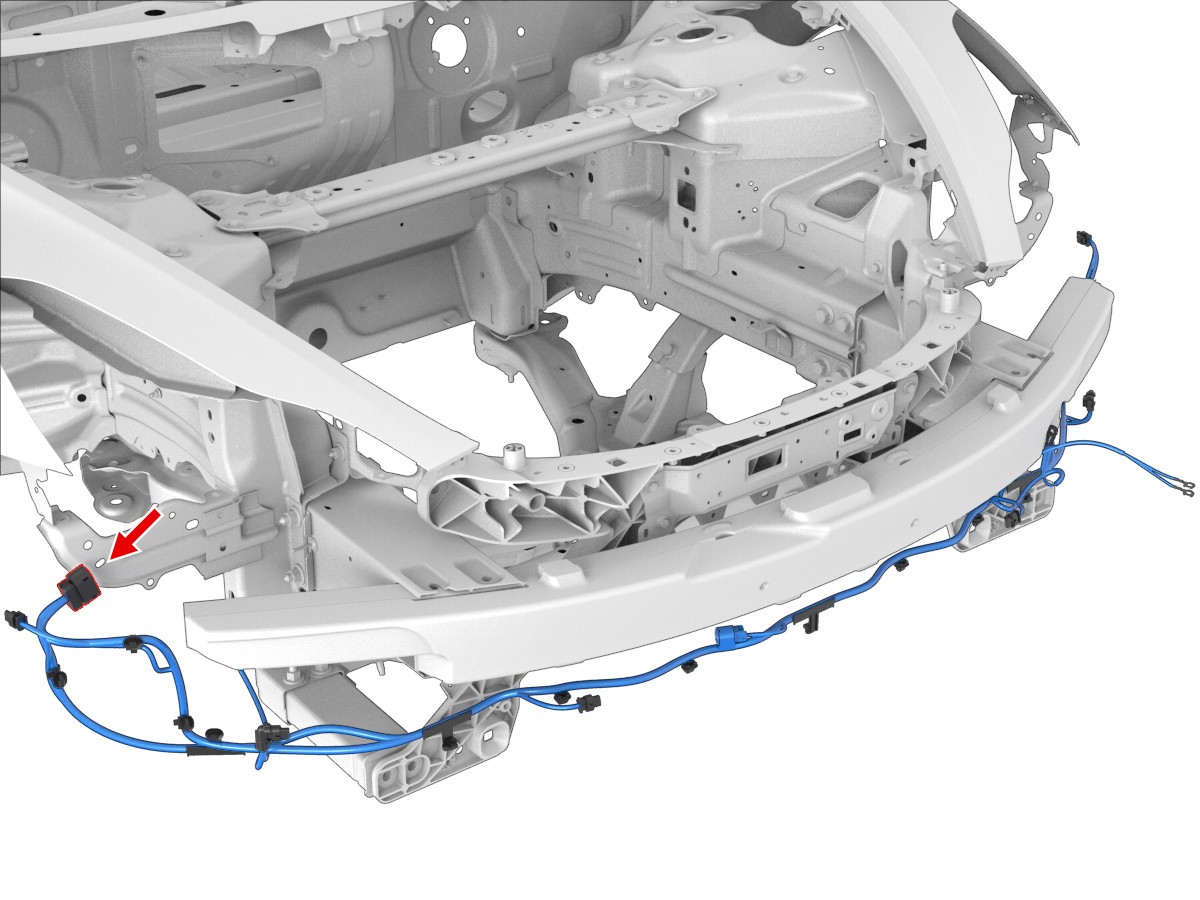

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35031566	1.5x0.8F	RD	1.00	TESLA	MAT-120-260	X355	1
2	DELPHI	35031567	1.5x0.8F	BN	0.35	TESLA	MAT-120-260	X130	2
3	DELPHI	35031567	1.5x0.8F	BU	0.35	TESLA	MAT-120-260	X131	2
4	DELPHI	35031567	1.5x0.8F	GN	0.35	TESLA	MAT-120-260	X132	2
5	DELPHI	35031567	1.5x0.8F	WH	0.35	TESLA	MAT-120-260	X133	2
6	DELPHI	35031567	1.5x0.8F	GY	0.35	TESLA	MAT-120-260	X134	2
7	DELPHI	35031567	1.5x0.8F	VT	0.35	TESLA	MAT-120-260	X135	2
8	DELPHI	35031566	1.5x0.8F	WH	1.00	TESLA	MAT-120-260	X102	1
9	unused
10	DELPHI	35031567	1.5x0.8F	RD	0.35	TESLA	MAT-120-260
11	DELPHI	35031567	1.5x0.8F	VT	0.35	TESLA	MAT-120-260	X262	1
12	DELPHI	35031567	1.5x0.8F	RD	0.35	TESLA	MAT-120-260	X262	2
13	DELPHI	35031567	1.5x0.8F	GY	0.35	TESLA	MAT-120-260	X263	1
14	DELPHI	35031567	1.5x0.8F	TN	0.35	TESLA	MAT-120-260	X263	2
15	DELPHI	35031567	1.5x0.8F	YE	0.35	TESLA	MAT-120-260
16	DELPHI	35031566	1.5x0.8F	BK	1.00	TESLA	MAT-120-260
