X905F

Tesla Part Number

1055819-00-A

Connector

MOLEX 33472-1206

Color

BK

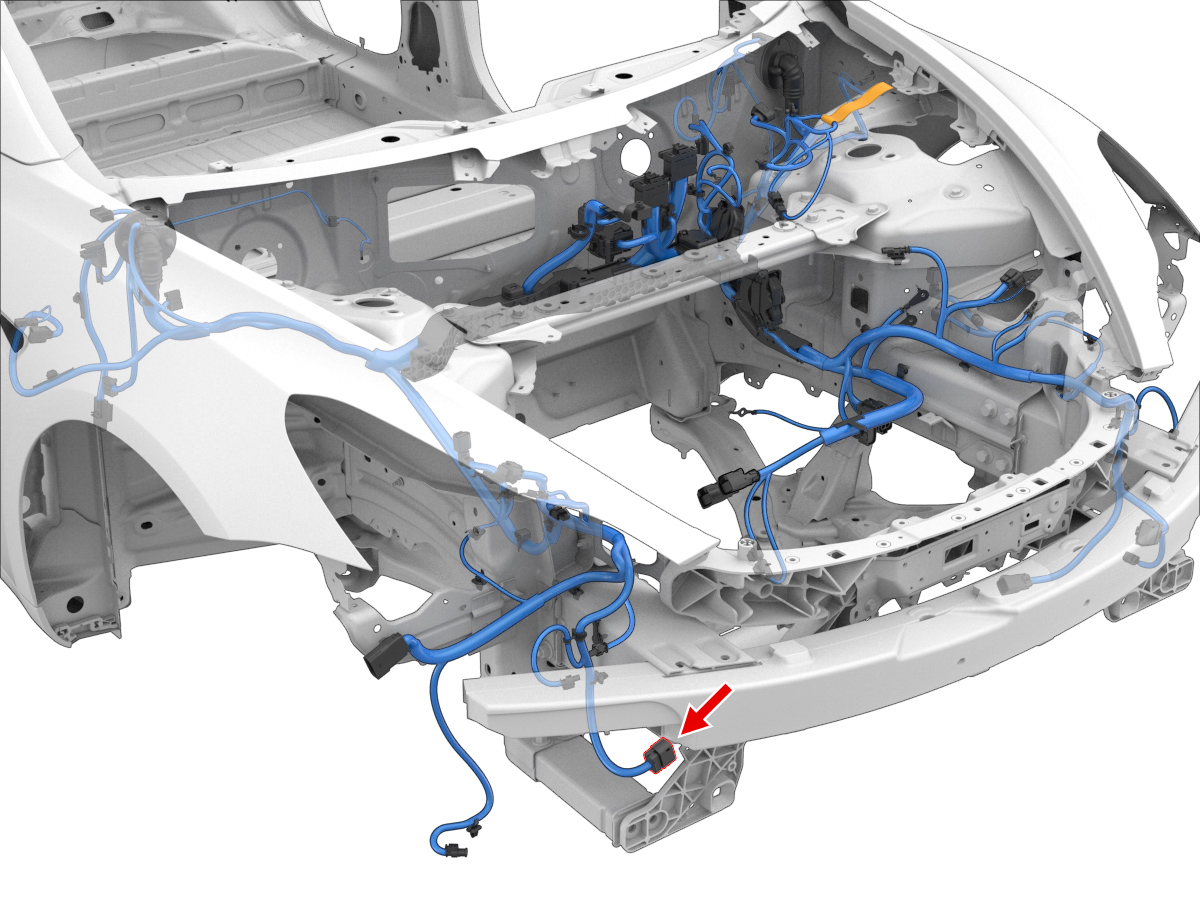

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3002	1.5x0.8F	BK	1.00	TESLA	MAT-120-240
2	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X010	7
