X905M

Tesla Part Number

1003238-00-B

Connector

MOLEX 33482-6201

Color

BK

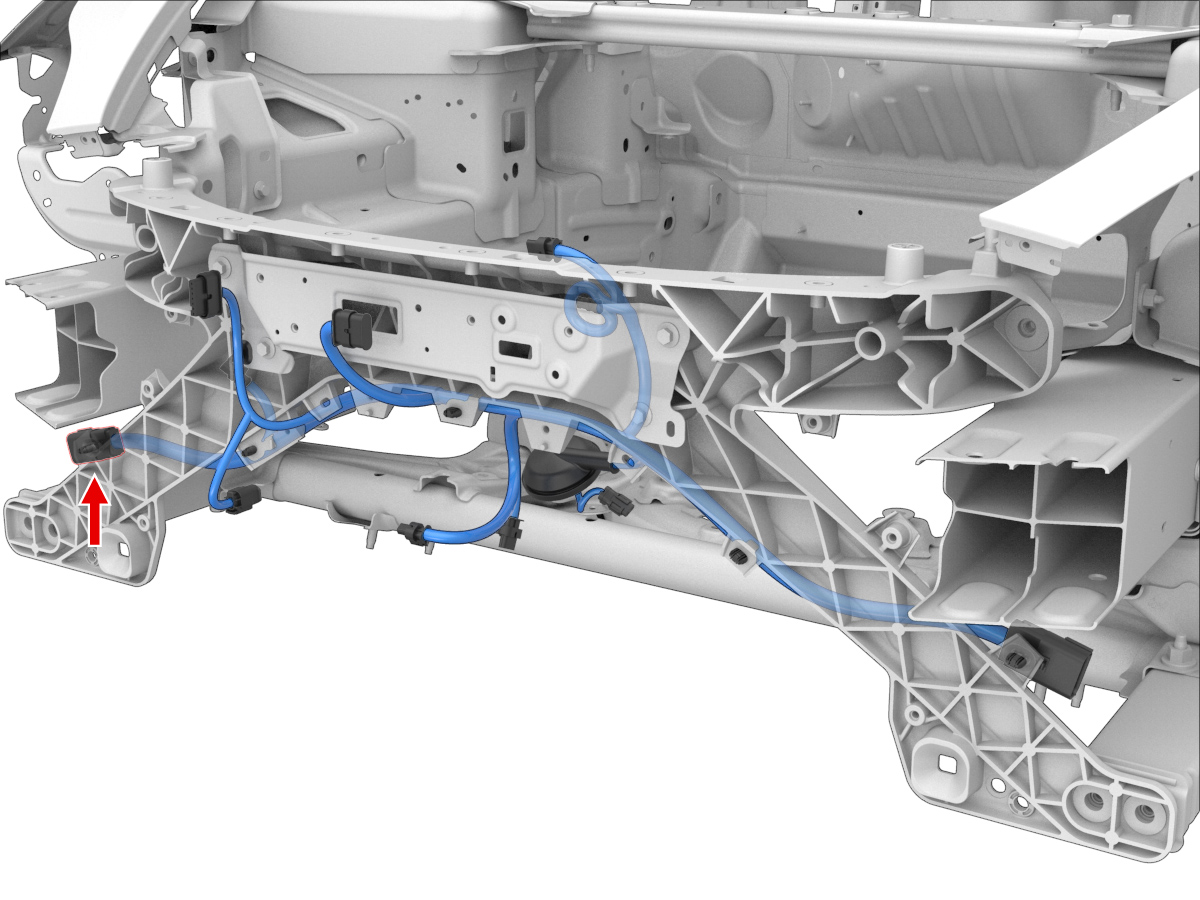

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				BK	1.00	TESLA	MAT-120-240
