X908F

Tesla Part Number

1042621-01-A

Connector

SUMITOMO 6098-5625

Color

BK

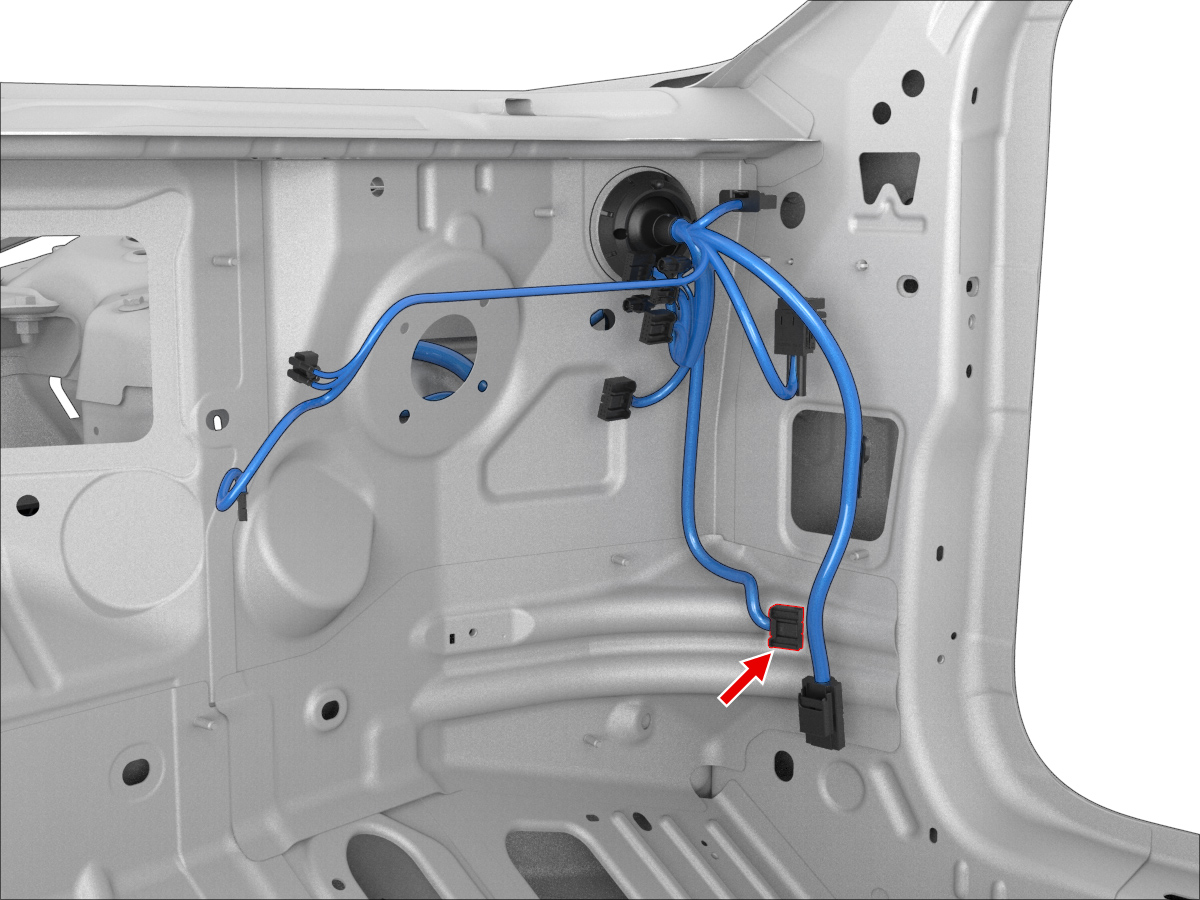

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X603	1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X603	2
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X151	17
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X151	29
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X602	1
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X602	2
7	unused
8	unused
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X037	28
11	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35
12	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X918M	1
13	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X172A	12
14	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13			X172A	11
15	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X057	1
16	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X151	31
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X151	18
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X541	1
19	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X911F	7
20	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35
