X909F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

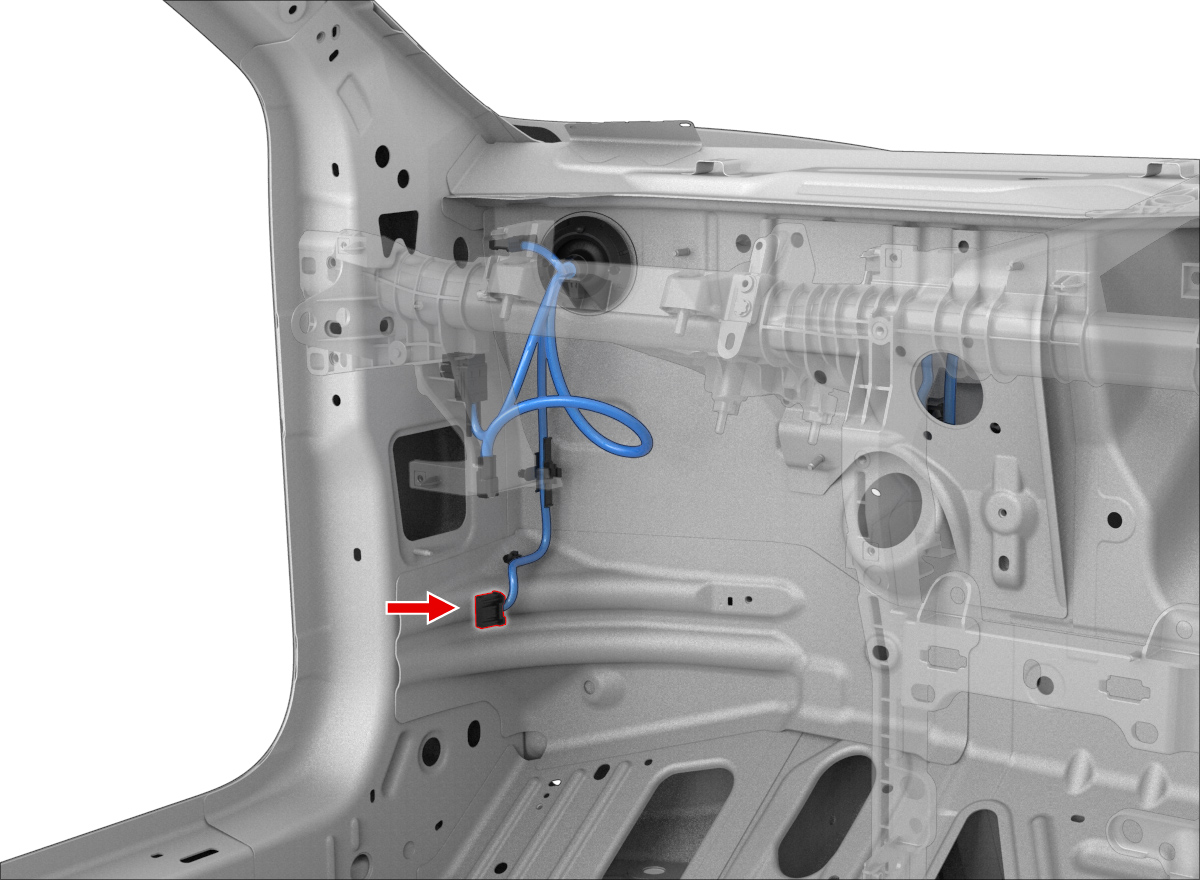

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X603A	1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X603A	2
3	unused
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X172	3
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X172	4
7	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X905F	5
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	6
9	unused
10	unused
11	unused
12	unused
13	unused
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X906F	9
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X010	15
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X010	30
18	unused
19	unused
20	unused
21	unused
22	unused
