X909M

Tesla Part Number

1097117-00-A

Connector

DELPHI 33245685

Color

WH

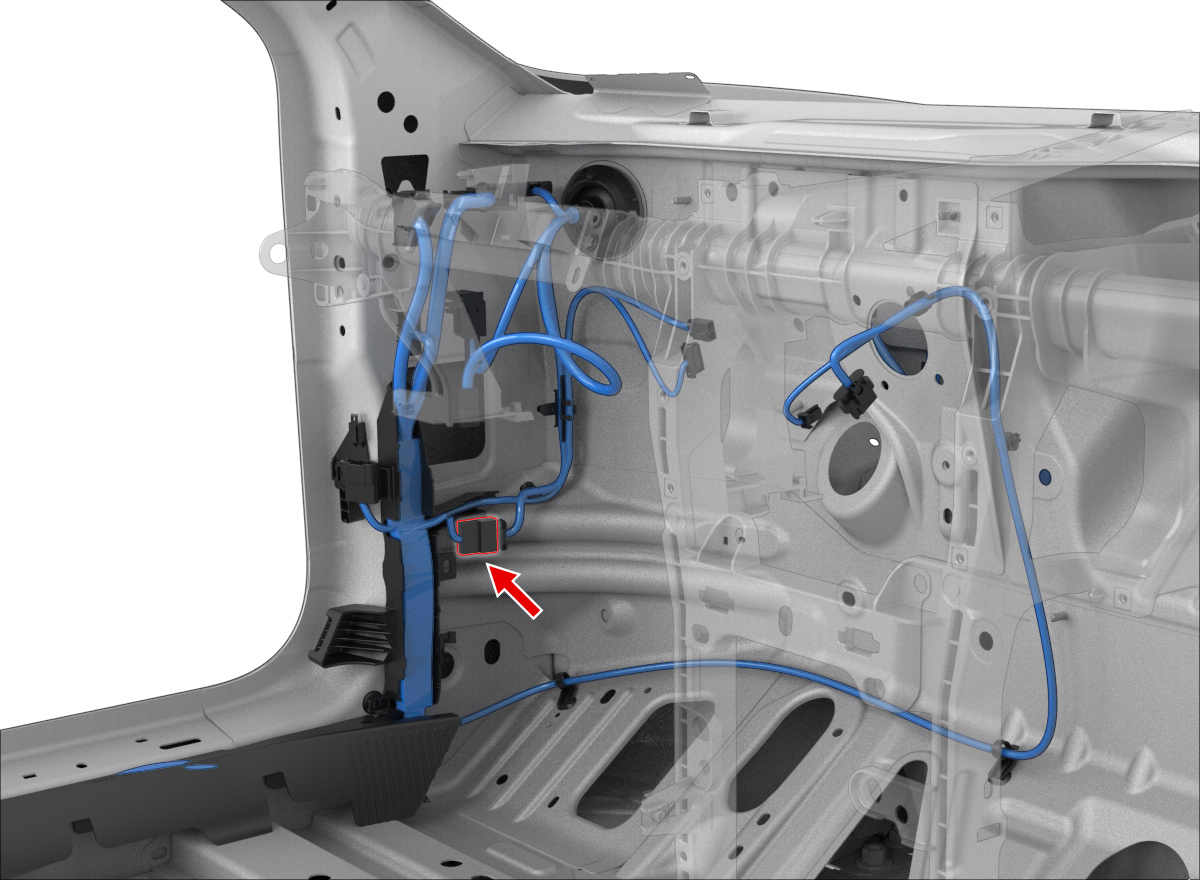

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X173A	2
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X173A	1
3	unused
4	unused
5	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X981M	9
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X981M	10
7	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	46
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	45
9	unused
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	8
11	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X201	7
12	unused
13	unused
14	unused
15	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X981M	2
16	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X031	29
17	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	30
18	unused
19	unused
20	unused
21	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	5
22	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X201	6
