X924F

Tesla Part Number

1042621-00-A

Connector

SUMITOMO 6098-5622

Color

WH

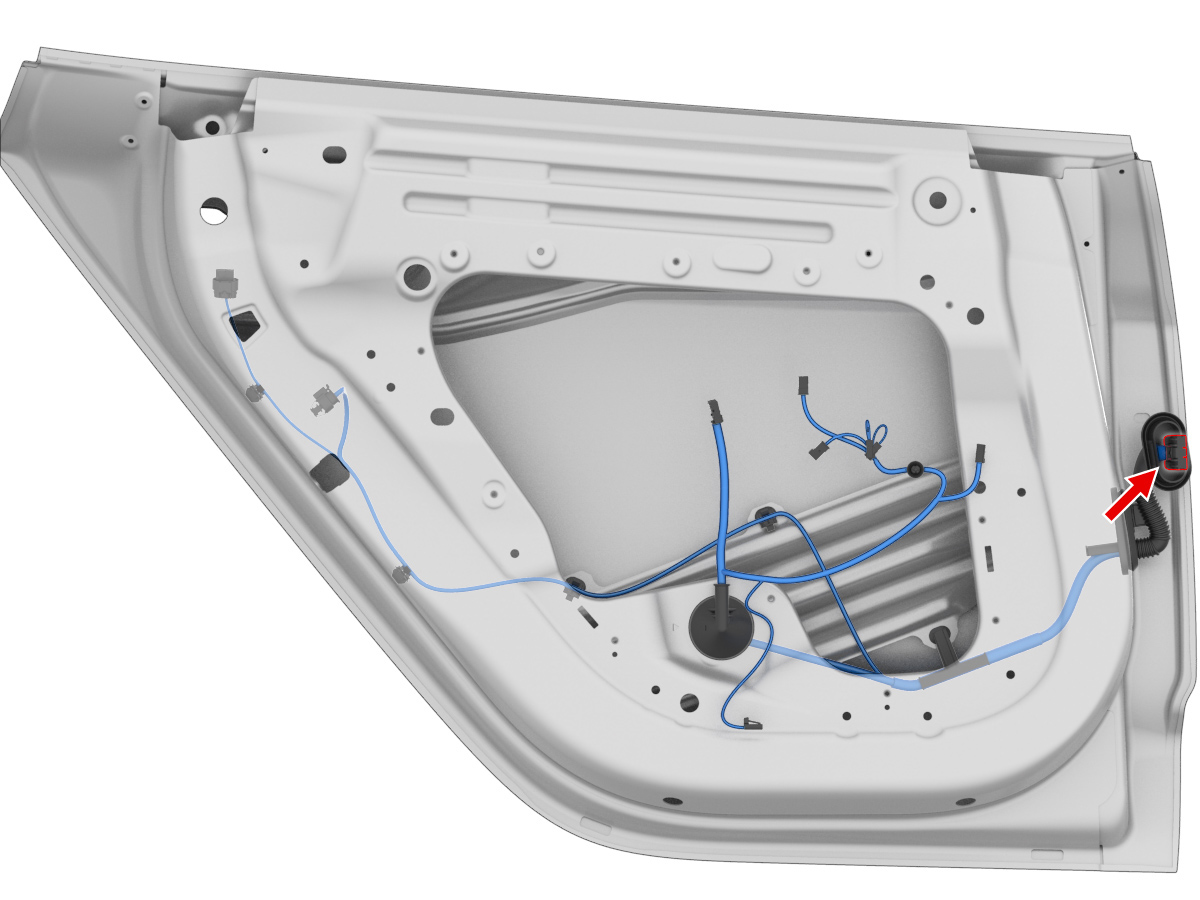

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X433	1
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X432	1
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X432	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X433	2
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X433	4
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X436	1
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X427	1
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X427	4
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X427	3
11	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X586	1
12	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X433	5
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X426	3
14	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X426	2
15	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X425	2
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X425	4
18	unused
19	unused
20	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X586	2
