X924M

Tesla Part Number

1042620-00-A

Connector

SUMITOMO 6098-5613

Color

WH

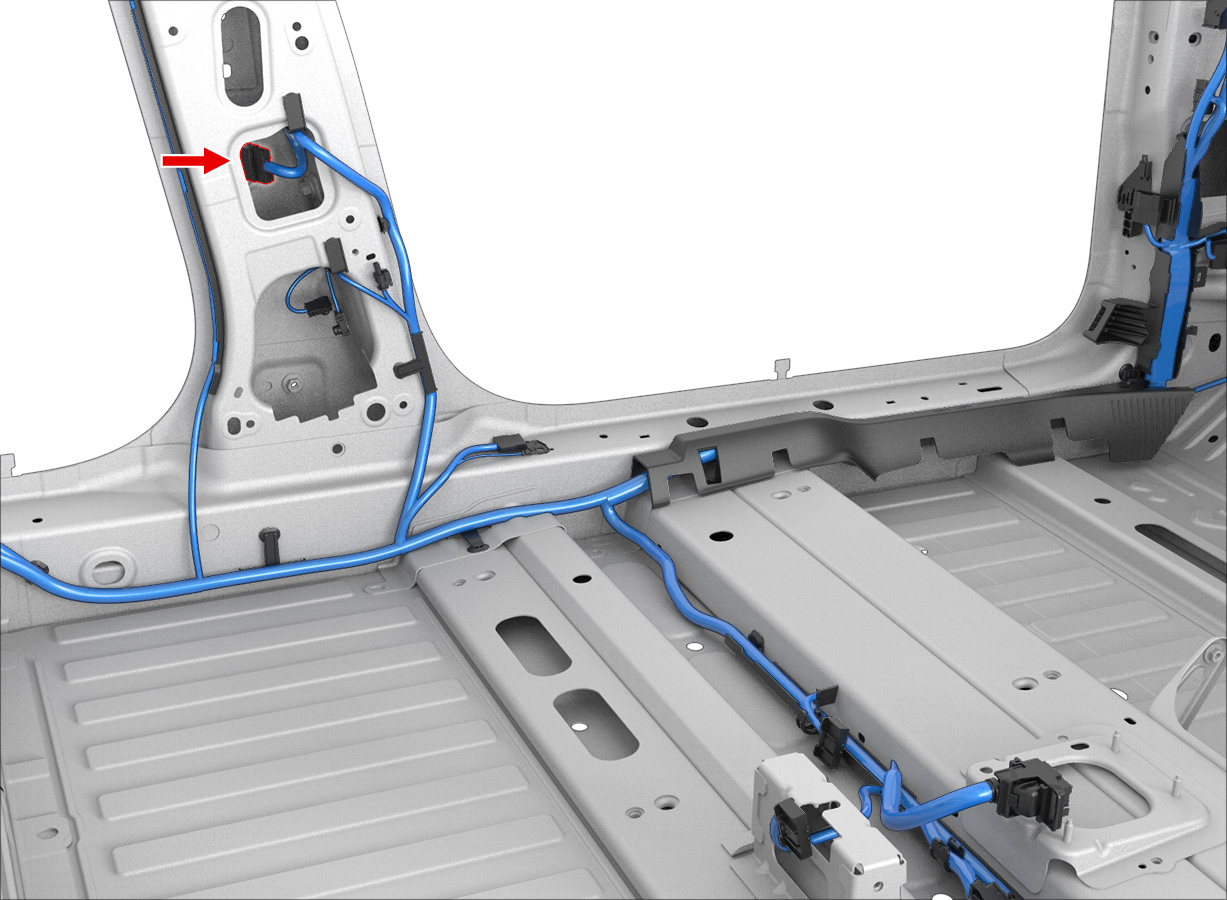

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	1.50			X031	1
2	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	8
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X030A	14
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X030B	1
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X030A	17
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X030A	18
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X031	24
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X030A	13
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X031	19
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X031	4
11	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X936F	14
12	SUMITOMO	8230-4923	1.5x0.6M	GY	1.50			X031	15
13	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X030A	11
14	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X031	23
15	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X030A	22
16	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	7
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X030A	23
18	unused
19	unused
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X936F	26
