X926F

Tesla Part Number

1042621-00-A

Connector

SUMITOMO 6098-5622

Color

WH

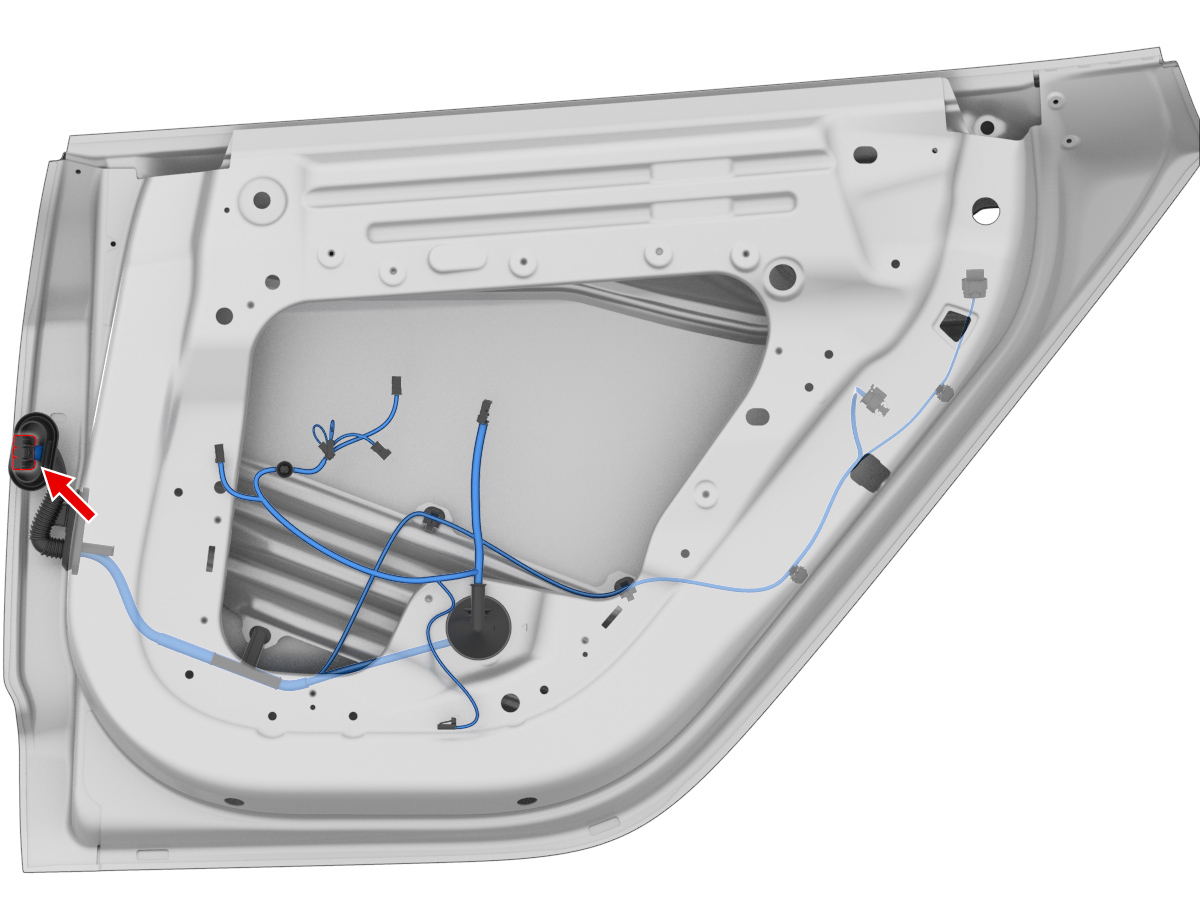

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X463	1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X456	3
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X462	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X463	2
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X463	4
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X466	1
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X457	1
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X457	4
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X457	3
11	unused
12	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X463	5
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X456	2
14	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X455	2
15	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X455	4
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X462	1
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X591	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X591	2
20	unused
