X935F

Tesla Part Number

1097116-00-A

Connector

DELPHI 33245684

Color

WH

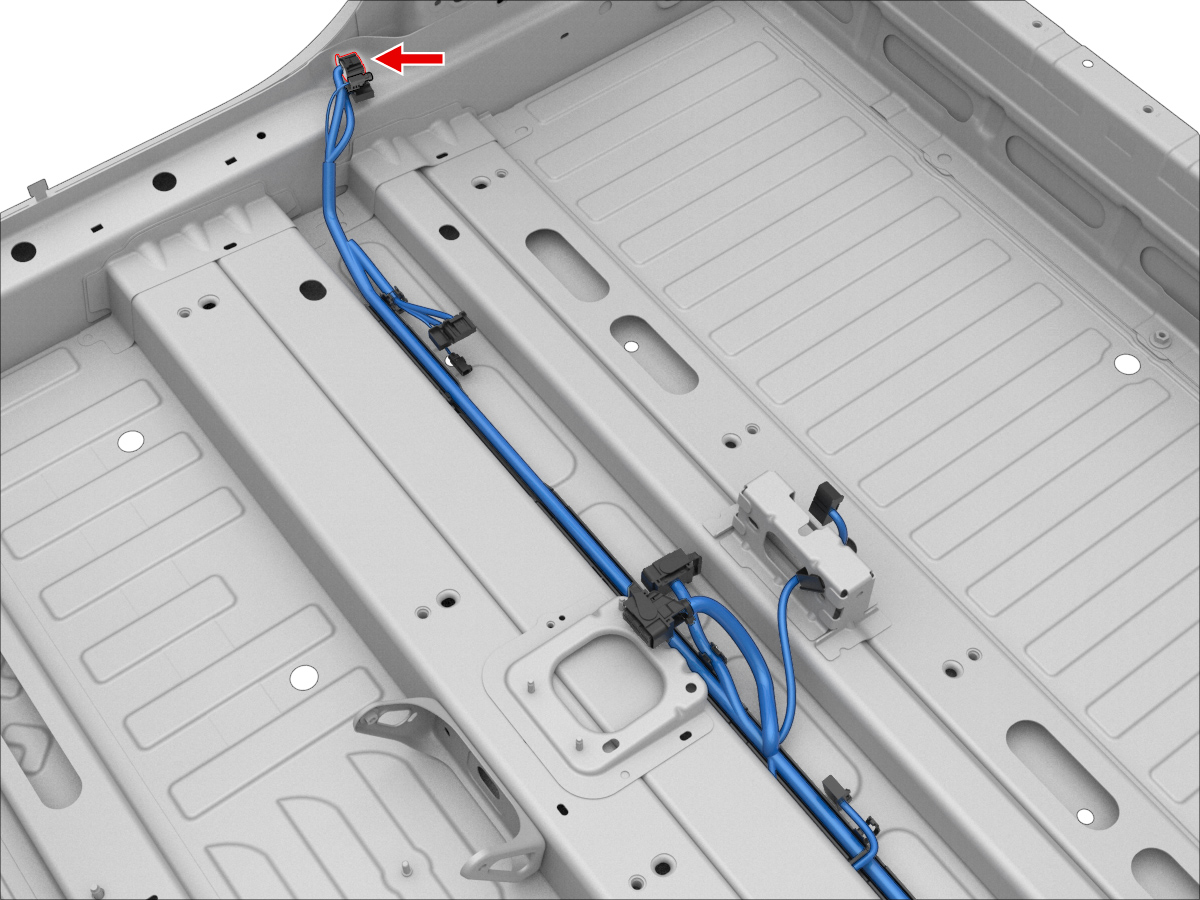

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X096	8
2	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13			X096	7
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	38
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	37
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	51
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	52
7	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X173A	8
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X173A	6
9	unused
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X039	8
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	16
13	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X201	15
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	1
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	2
16	unused
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X201	19
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	20
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X030A	19
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X201	10
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	9
