X952M

Tesla Part Number

1516174-00-A

Connector

DELPHI 15521020

Color

BK

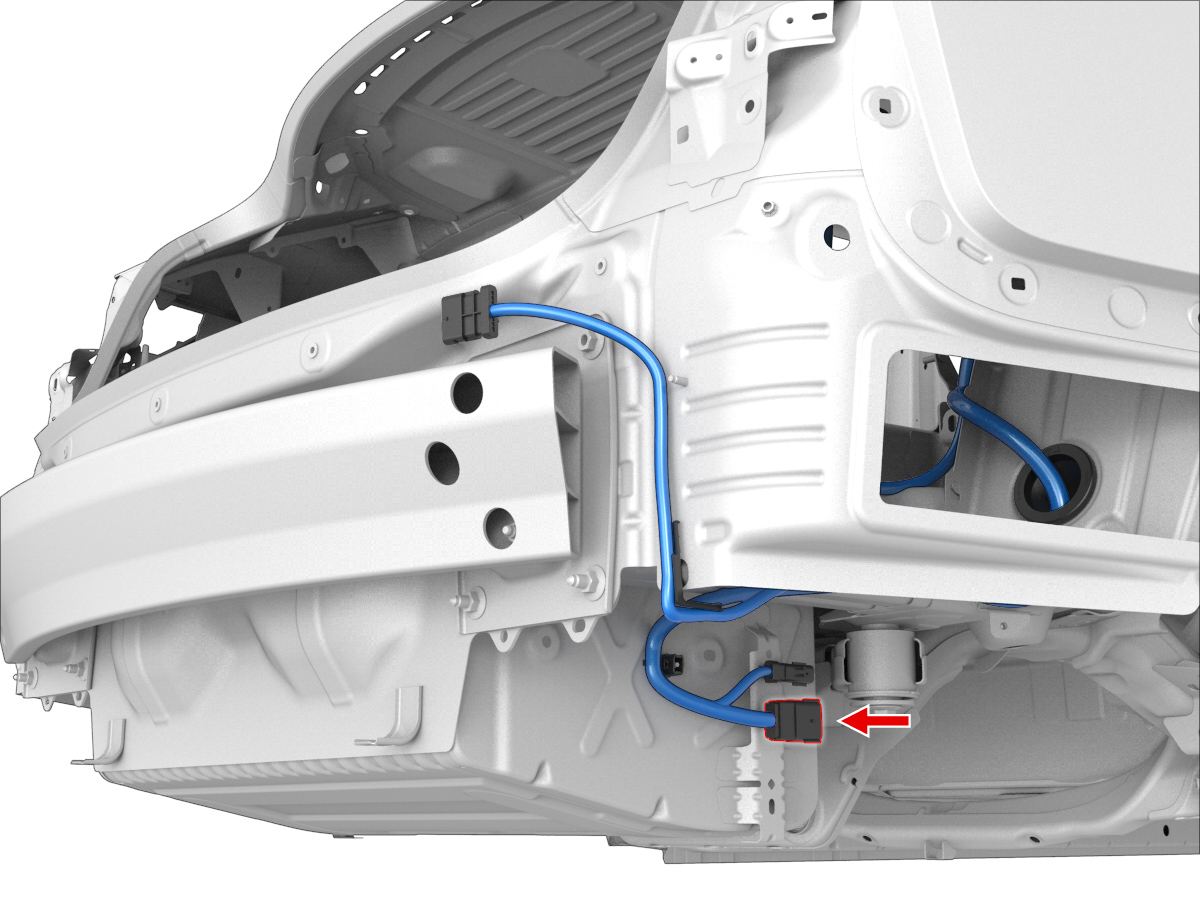

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	DELPHI	13964789	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X908M	16
3	DELPHI	13964789	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X908M	17
4	DELPHI	13964789	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X908M	3
5	DELPHI	13964789	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X908M	4
6	DELPHI	13964789	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X050A	22
7	DELPHI	13964789	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X050A	23
8	DELPHI	13964789	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X098	1
9	DELPHI	13964789	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X908M	18
10	DELPHI	13964791	1.5x0.8M	RD	1.50	TESLA	MAT-120-240	X051	3
11	unused
12	unused
13	unused
14	DELPHI	13964789	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	G032	3
15	unused
16	unused
