X954F

Tesla Part Number

1042621-01-A

Connector

SUMITOMO 6098-5625

Color

BK

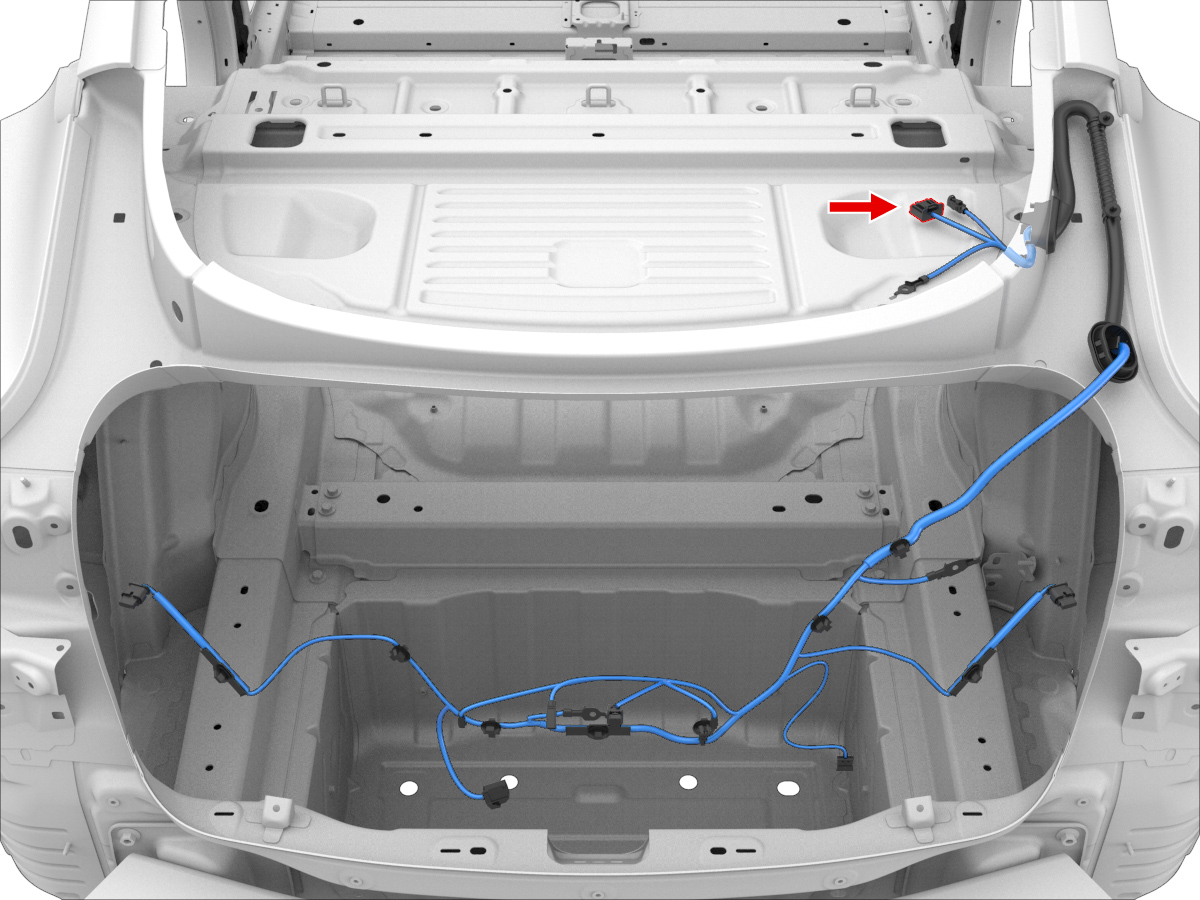

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X271	2
3	SUMITOMO	8100-3625	0.64x0.64F	YE/BK	0.35			X271A	4
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	WH/DB	0.35			X271	3
6	SUMITOMO	8100-3625	0.64x0.64F	DB	0.35			X273	3
7	SUMITOMO	8100-3625	0.64x0.64F	BN/BK	0.35			X273	2
8	SUMITOMO	8100-3625	0.64x0.64F	RD/BK	0.35			X273A	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT/DB	0.35			X955F	4
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X955F	5
11	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X340	5
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	WH/BK	0.35			X340	1
14	SUMITOMO	8100-3625	0.64x0.64F	BU/BK	0.35			X347	1
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X340	2
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X340	6
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X955F	1
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X955F	2
20	SUMITOMO	8240-0213	1.5x0.64F	GN	1.00			X340	4
