X954M

Tesla Part Number

1042620-01-A

Connector

SUMITOMO 6098-5616

Color

BK

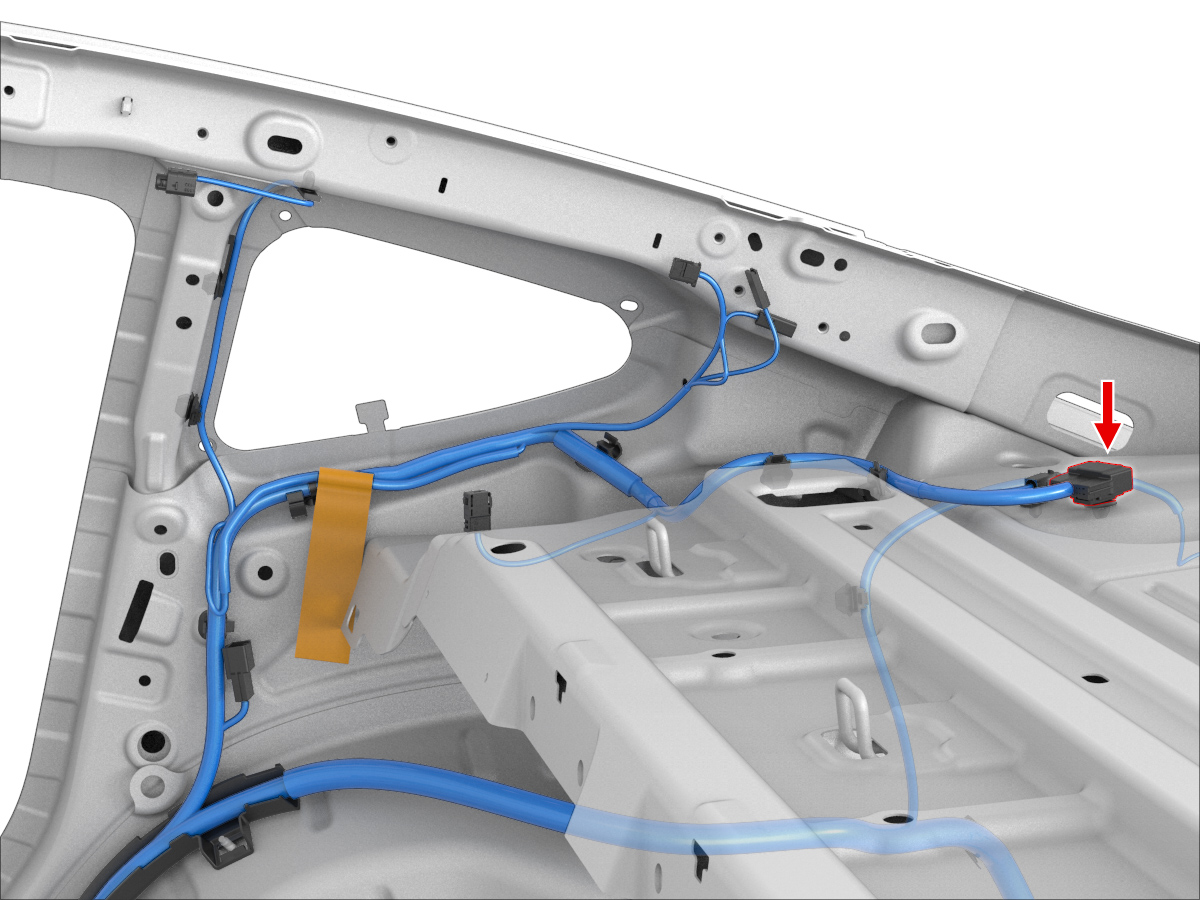

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	41
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	8
4	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X051	38
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X051	24
6	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X051	9
7	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X050A	24
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	23
9	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X059	9
10	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X059	10
11	SUMITOMO	8230-4924	1.5x0.6M	RD	1.00			X050B	6
12	unused
13	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X050A	8
14	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X050A	19
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X059	23
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X059	22
18	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X059	20
19	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X059	21
20	SUMITOMO	8230-4924	1.5x0.6M	GN	1.00			X050B	2
