X955M

Tesla Part Number
1584380-00-A
Connector
AMP 1703874-1
Color
BK

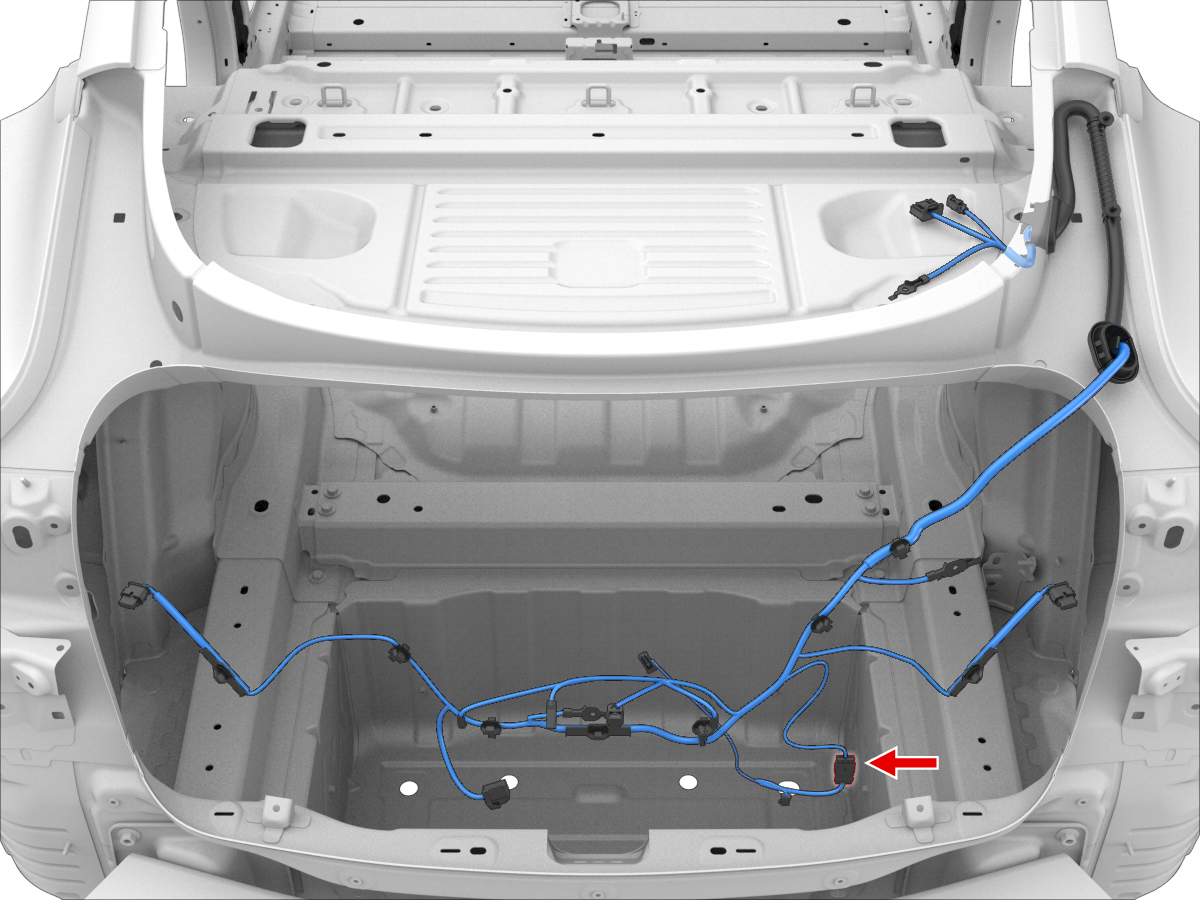

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1-928918-10.63x0.63MWH0.35X3483
2AMP1-928918-10.63x0.63MBU0.35X3481
3AMP1-928918-10.63x0.63MBK0.35X3482
4AMP1-928918-10.63x0.63MVT0.35X5921
5AMP1-928918-10.63x0.63MBK0.35X5922
6unused
