X970M

Tesla Part Number
1042590-00-A
Connector
SUMITOMO 6098-5686
Color
WH

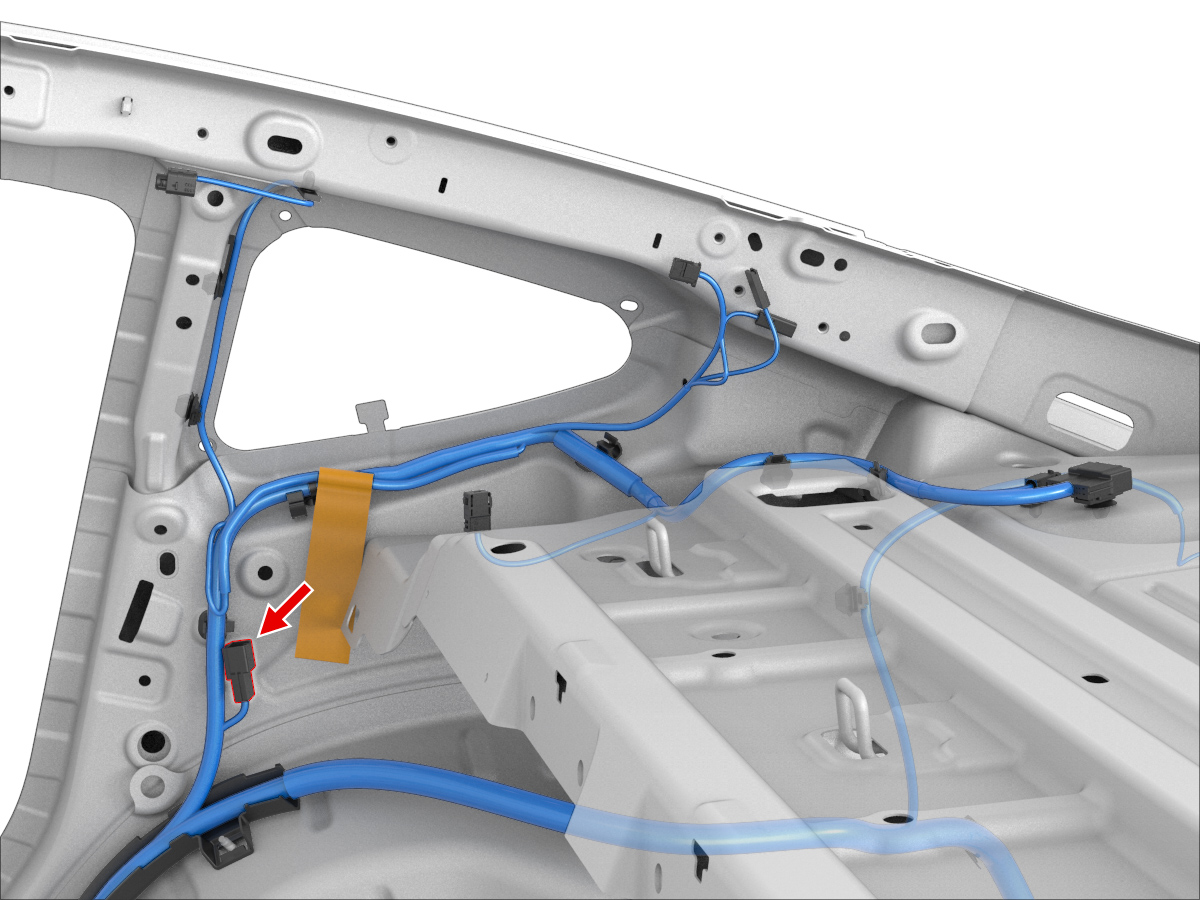

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8230-49251.5x0.6MGY0.50X5606
2SUMITOMO8230-49251.5x0.6MYE0.50X5605
3SUMITOMO8230-49251.5x0.6MVT0.50X56012
4SUMITOMO8230-49251.5x0.6MWH0.50X56011
5unused
6SUMITOMO8230-49251.5x0.6MBU0.35X050A25
7SUMITOMO8230-49251.5x0.6MBK0.35G03212
8unused
