X981M

Tesla Part Number

1042620-02-A

Connector

SUMITOMO 6098-5620

Color

BU

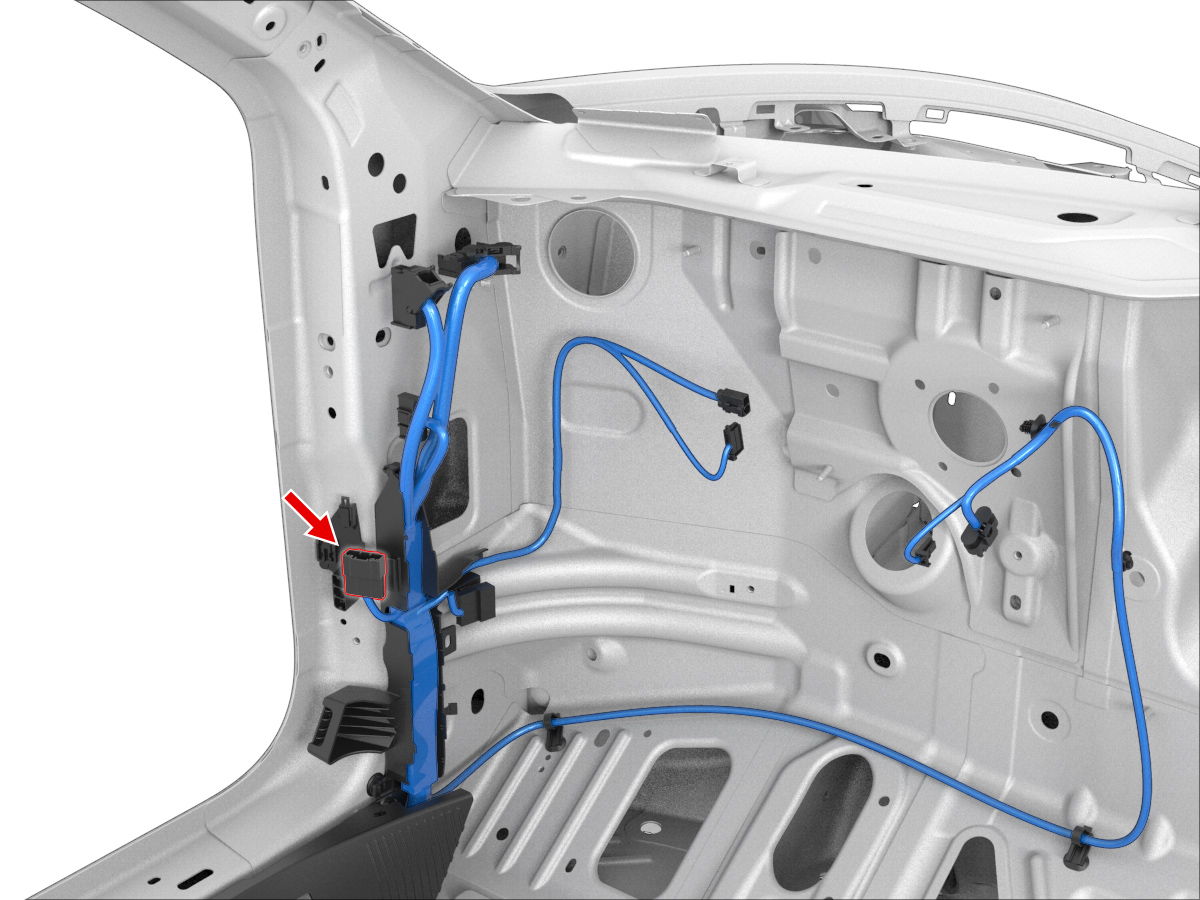

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X909M	15
3	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X936F	5
4	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X936F	19
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X936F	11
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X936F	23
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X936F	12
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X936F	24
9	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X909M	5
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X909M	6
11	unused
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X030B	6
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X030A	6
19	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X030A	26
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.35			G031	3
