G510

Tesla Part Number

1616205-00-B

Connector

KSE K21F00511

Color

BK

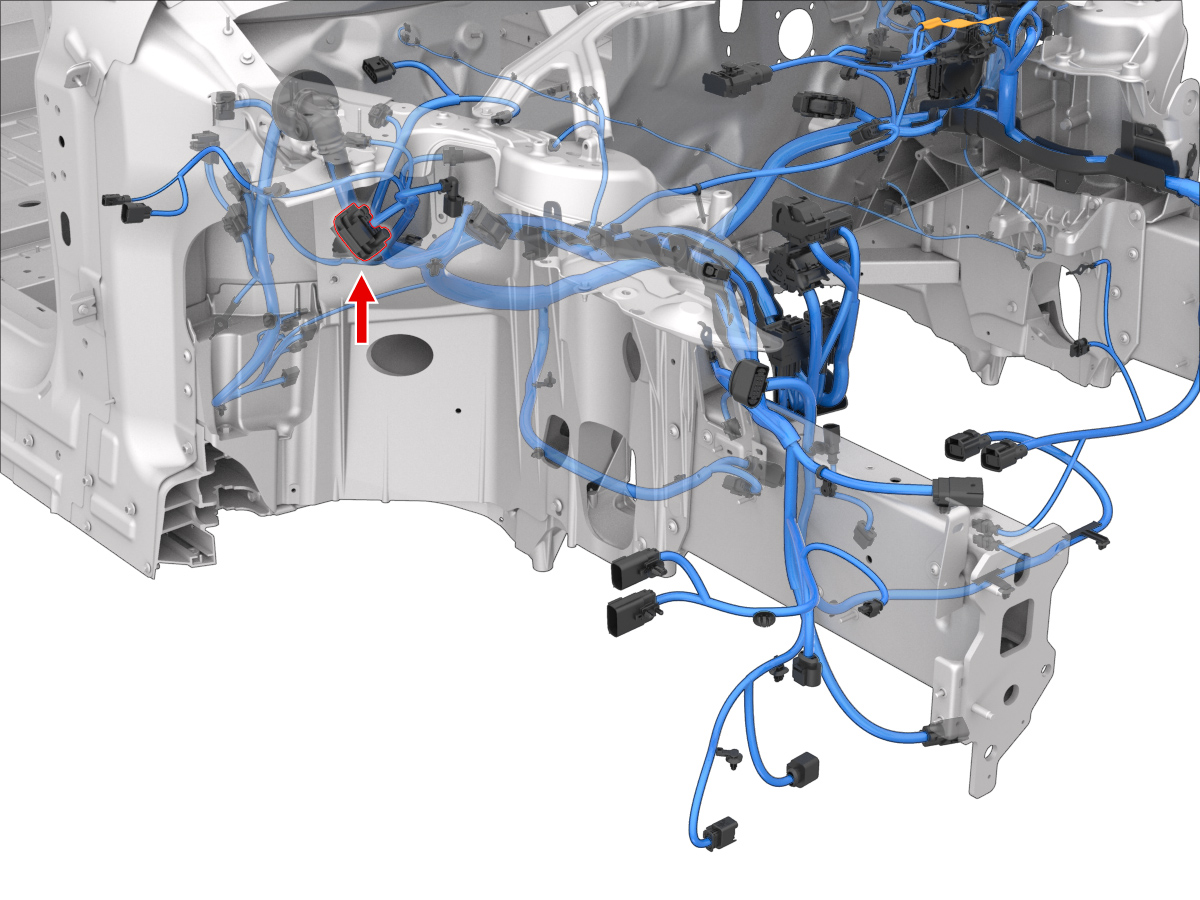

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	6.00	DELPHI	15327788	G511	1
2	unused
3	DELPHI	35138798	1.5	BK	1.50	DELPHI	13582732	X964M	16
4	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X099	2
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X262	3
6	DELPHI	33351050	6.35F	BK	4.00	KSE	K60F00601	X117	9
7	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X277	2
8	unused
9	DELPHI	35138799	1.5	BK	0.75	DELPHI	13582730	X990F	10
10	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X995F	10
11	unused
12	unused
13	DELPHI	33350989	2.8x0.8F	BK	2.00	QSR	X-1039-002	X177	1
14	unused
15	DELPHI	33351050	6.35F	BK	4.00	KSE	K60F00601	X190A	2
