X010

Tesla Part Number

1588681-10-A

Connector

MOLEX 34885-5511

Color

BK

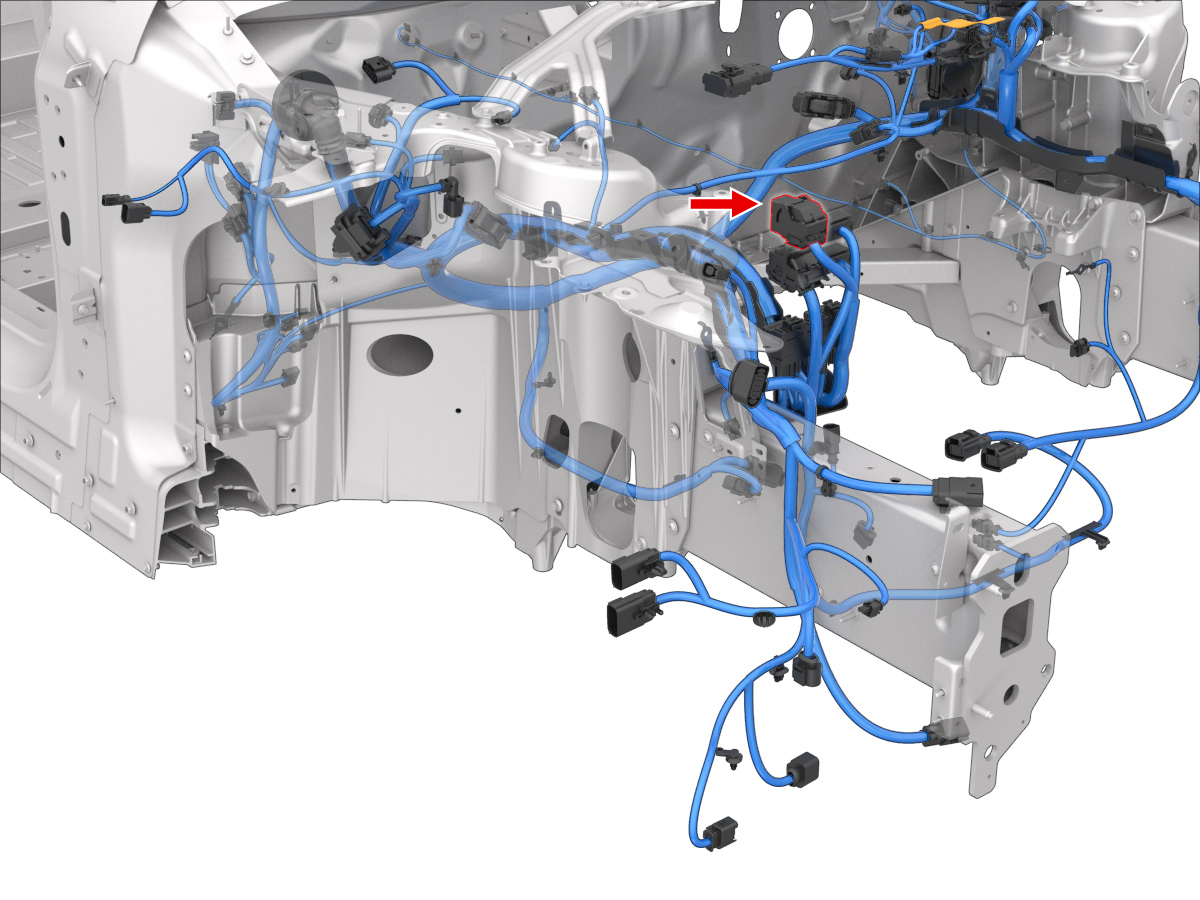

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
A1	unused
A2	unused
A3	MOLEX	34805-0412	1.5x0.8F	RD	1.00	TESLA	MAT-160-280	X964M	7
A4	unused
A5	MOLEX	34805-0412	1.5x0.8F	BU	1.00	TESLA	MAT-160-280	X964M	8
B1	unused
B2	unused
B3	unused
B4	MOLEX	34805-0412	1.5x0.8F	YE	1.00	TESLA	MAT-160-280	X484	1
B5	MOLEX	34805-0412	1.5x0.8F	GY	1.00	TESLA	MAT-160-280	X485	1
C1	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X966M	13
C2	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X966M	11
C3	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X995F	2
C4	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X966M	20
C5	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190	X517	2
D1	MOLEX	34803-3411	0.64x0.64F	BK	0.35	TESLA	MAT-120-190
D2	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X966M	12
D3	unused
D4	MOLEX	34803-3412	0.64x0.64F	WH	0.50	TESLA	MAT-120-190	X964M	4
D5	unused
E1	MOLEX	34803-3411	0.64x0.64F	BU	0.35	TESLA	MAT-120-190	X170	1
E2	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X966M	8
E3	MOLEX	34803-3412	0.64x0.64F	GN	0.50	TESLA	MAT-120-190	X964M	3
E4	unused
E5	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X520	4
F1	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X057	5
F2	unused
F3	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X995F	1
F4	unused
F5	unused
G1	MOLEX	34803-3412	0.64x0.64F	YE	0.50	TESLA	MAT-120-190	X057	9
G2	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X057	4
G3	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X117	20
G4	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X520	3
G5	MOLEX	34803-3412	0.64x0.64F	BU	0.50	TESLA	MAT-120-190	X561	B
H1	MOLEX	34803-3412	0.64x0.64F	VT	0.50	TESLA	MAT-120-190	X025	C3
H2	unused
H3	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X960M	11
H4	unused
H5	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X960M	14
J1	unused
J2	MOLEX	34803-3411	0.64x0.64F	GN	0.35	TESLA	MAT-120-190	X960M	13
J3	MOLEX	34803-3411	0.64x0.64F	GY	0.35	TESLA	MAT-120-190	X960M	12
J4	unused
J5	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X517	1
K1	MOLEX	34805-0412	1.5x0.8F	RD	1.00	TESLA	MAT-160-280	X995F	11
K2	MOLEX	34805-0412	1.5x0.8F	WH	1.00	TESLA	MAT-160-280	X262	1
K3	unused
K4	unused
K5	unused
L1	unused
L2	unused
L3	MOLEX	34805-0412	1.5x0.8F	VT	0.75	TESLA	MAT-160-280	X966M	1
L4	MOLEX	34805-0412	1.5x0.8F	BU	0.75	TESLA	MAT-160-280	X966M	2
L5	MOLEX	34805-0412	1.5x0.8F	RD	1.00	TESLA	MAT-160-280	X560	2
