X022

Tesla Part Number
1559062-01-A
Connector
AMP 2-1564330-1
Color
GY

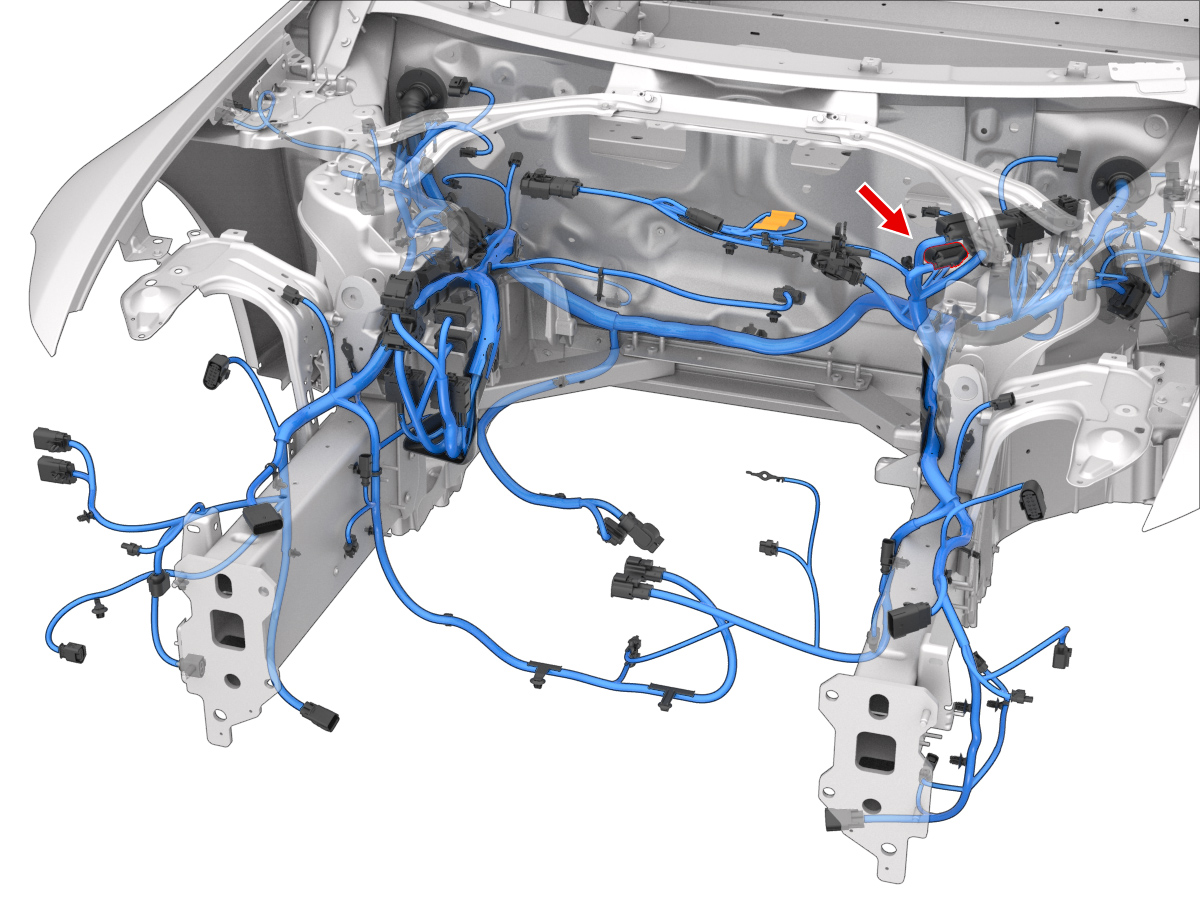

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1241414-16.3x0.8FBU2.00AMP1394511-1X1499
2AMP1241418-46.3x0.8FYE4.00AMP1394512-1X190A1
3AMP1241418-46.3x0.8FRD4AMP1394512-1X1061
4AMP1241418-46.3x0.8FVT4.00AMP1394512-1X4529
