X035

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

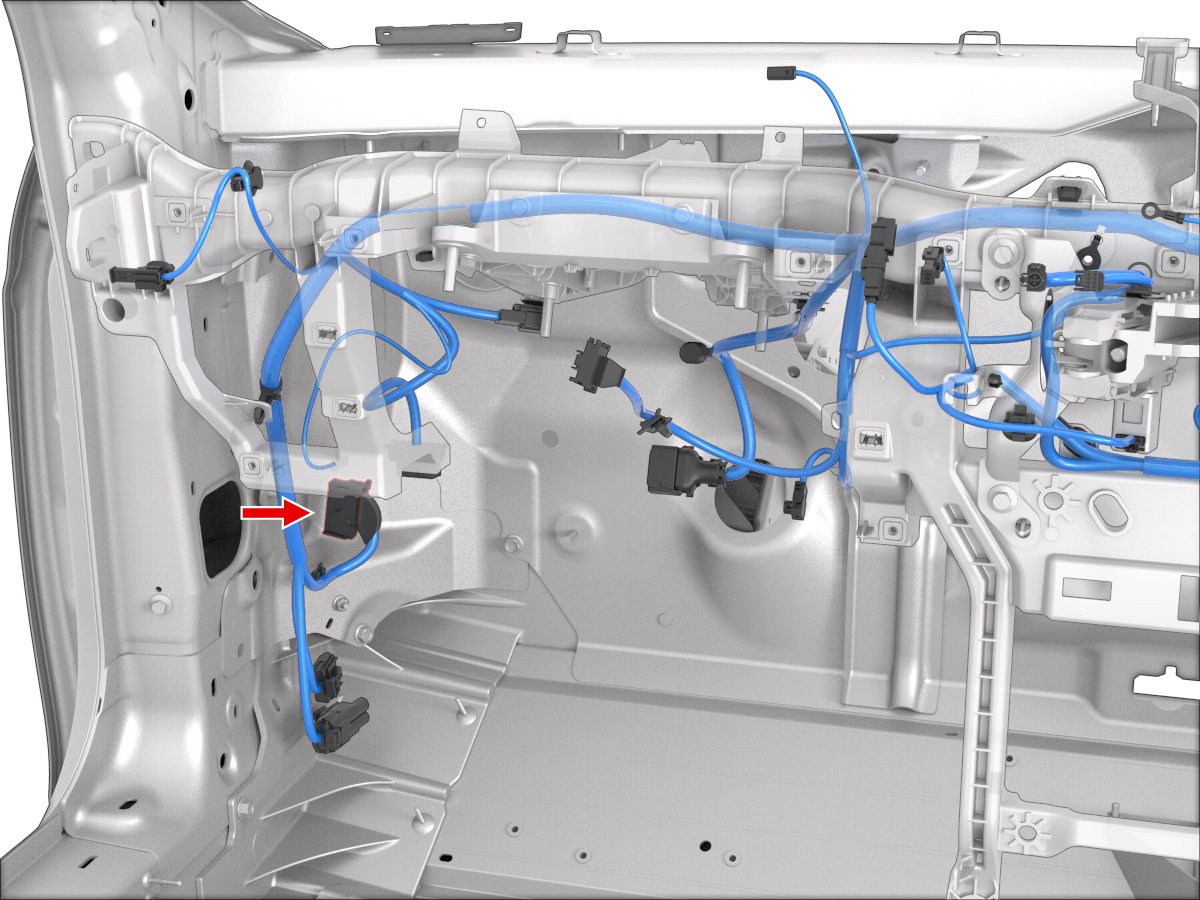

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X164	3
2	SUMITOMO	8240-0213	1.5x0.64F	YE	0.75			X164	1
3	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X166	2
4	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X950F	23
5	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X950F	22
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X165	4
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X164	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X437	1
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X160	3
11	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X160	2
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X436	11
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X436	16
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X436	3
15	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X950F	20
16	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00
17	SUMITOMO	8240-0213	1.5x0.64F	GY	0.75			X160	7
18	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X950F	21
19	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X950F	19
20	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X950F	18
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X280	1
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X436	6
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X436	14
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X436	8
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X433	2
27	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X433	1
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X160	1
29	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X437	10
30	unused
31	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X165	1
32	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X165	3
33	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X166	5
34	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X166	6
35	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X166	1
36	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X950F	13
37	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X950F	24
38	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
39	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X166	7
40	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X166	11
41	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X160	14
42	unused
43	unused
44	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X437	9
45	unused
