X037

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

NA

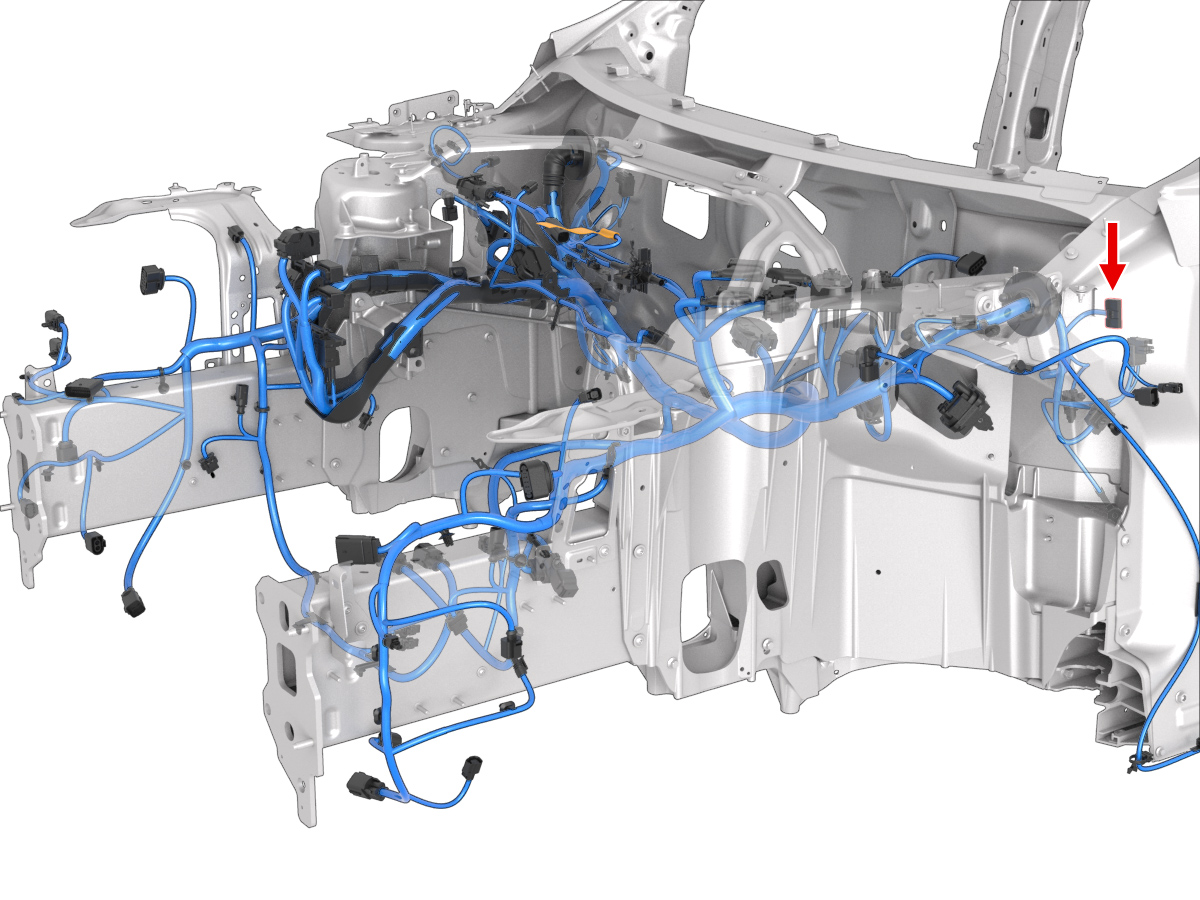

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X240	2
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X240	1
3	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X241	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X241	1
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X025	D2
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X960M	1
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X960M	2
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X210	2
11	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X210	1
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
14	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X025	G4
17	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X025	H4
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X995F	4
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X995F	5
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X535	5
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X025	H5
25	unused
26	unused
27	unused
28	unused
