X050B

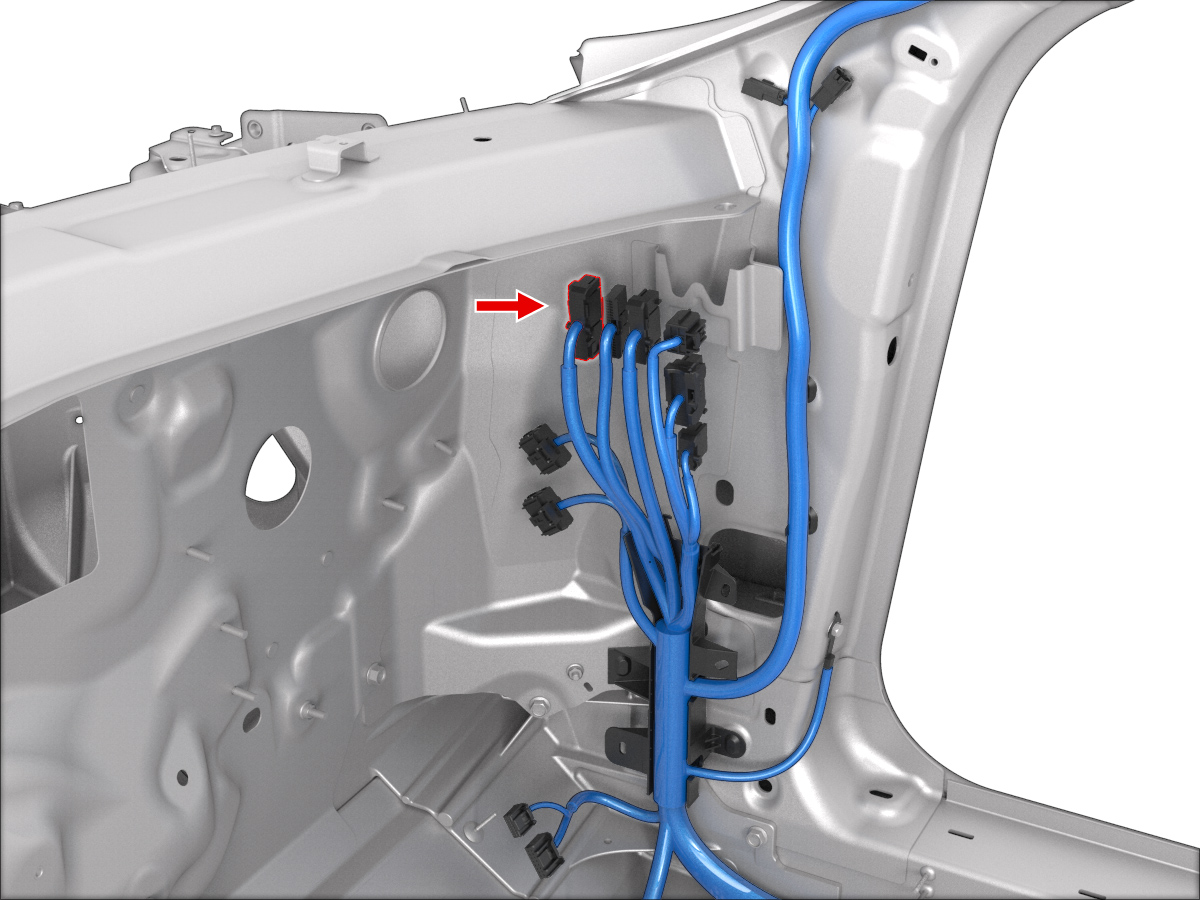

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X909M | 5 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 2.00 | X993M | 9 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X993M | 1 | ||
| 5 | SUMITOMO | 8240-0213 | 1.5x0.64F | VT | 1.00 | X978F | 1 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN | 0.35 | X909M | 15 | ||
| 7 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 1.50 | X946M | 26 | ||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X143 | 1 | ||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 1.50 | X946M | 14 | ||
| 10 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.35 | X922M | 4 | ||
| 11 | unused | ||||||||
