X052

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

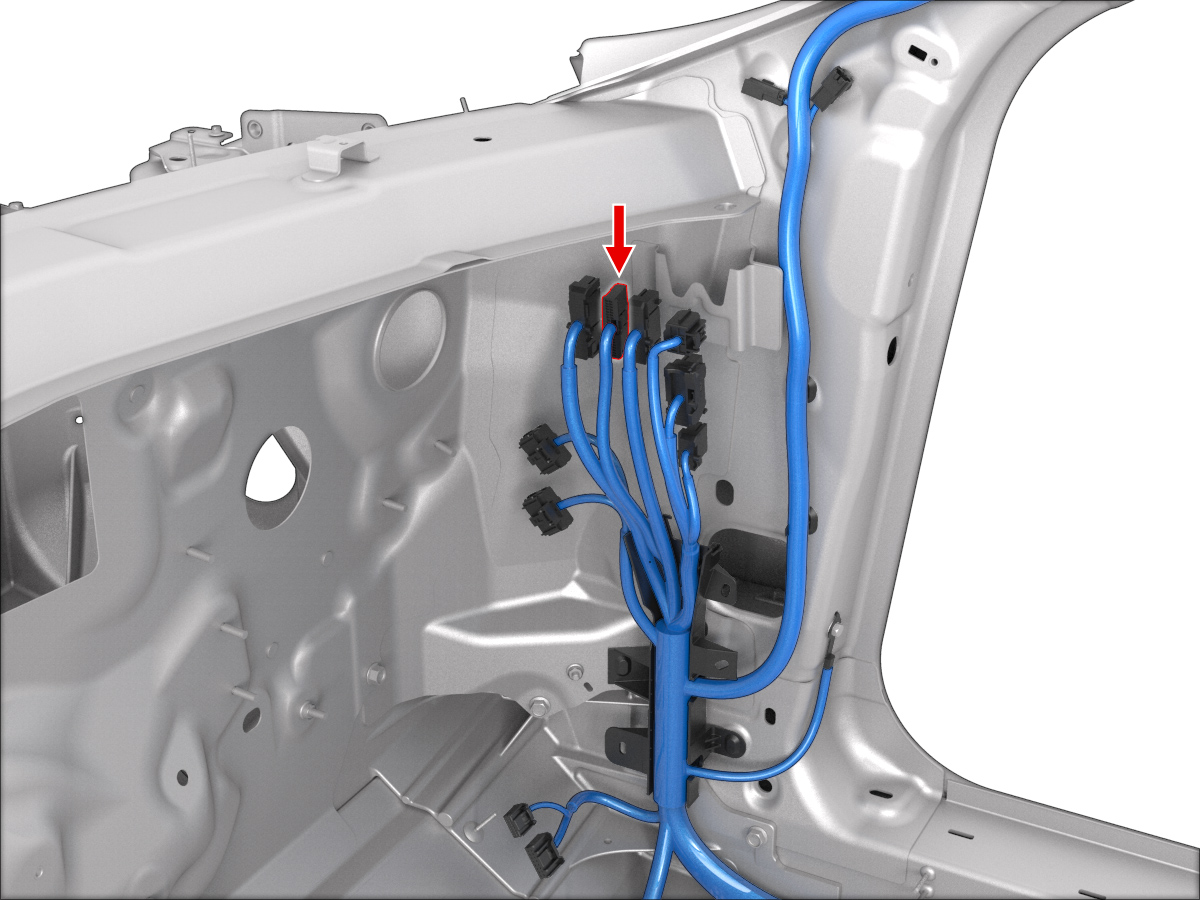

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X987F	5
2	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X454	5
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X400	7
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X488	5
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X921M	10
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X922M	10
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X922M	11
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X922M	1
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X921M	9
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X921M	1
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X921M	8
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X987F	6
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X454	6
18	unused
19	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X400	8
20	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X488	7
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X488	1
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X922M	12
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X372	1
26	unused
27	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X946M	2
28	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X946M	19
29	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X372	2
30	unused
31	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X946M	8
32	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X946M	6
33	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X946M	18
34	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X946M	7
35	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X946M	4
36	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X946M	3
