X062

Tesla Part Number

1506905-00-A

Connector

SUMITOMO 6098-8944

Color

WH

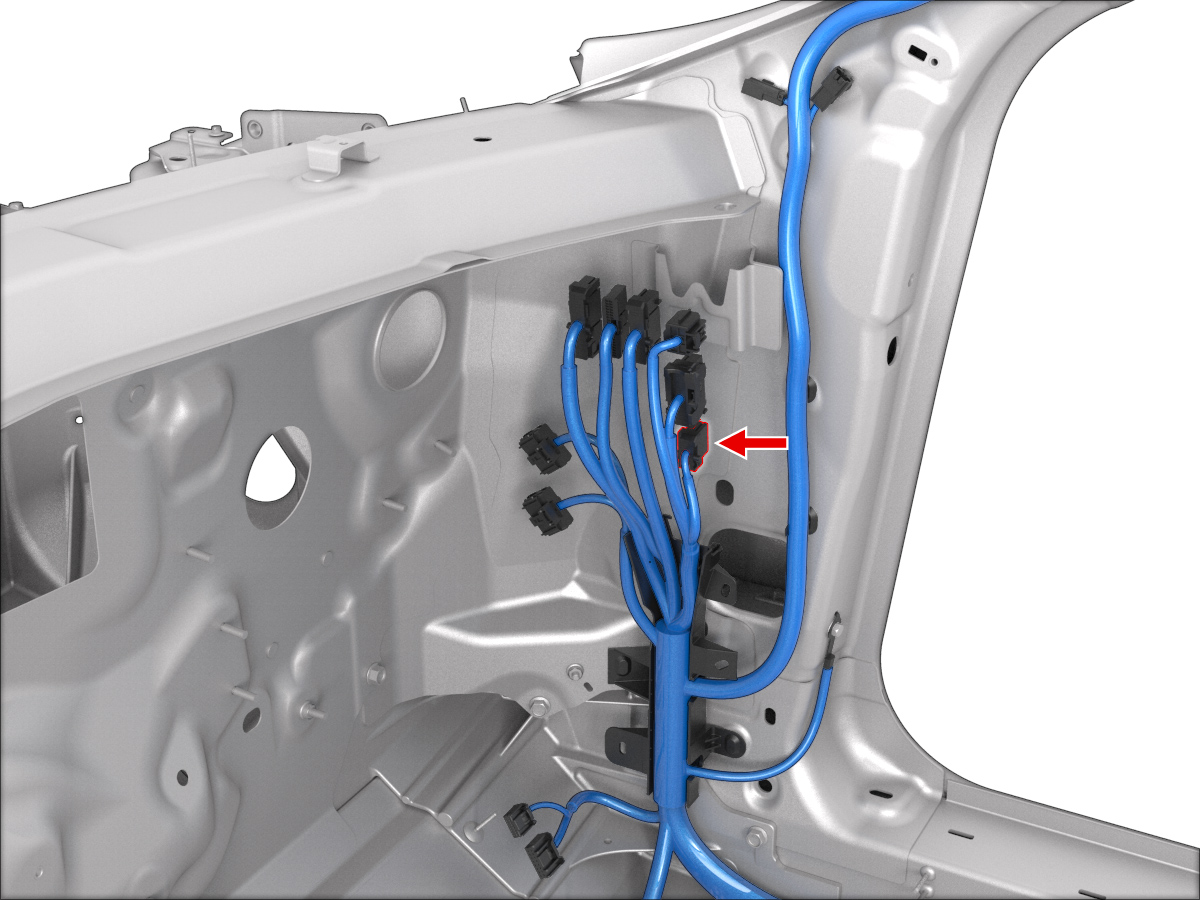

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X408A	1
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X408A	2
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X460	1
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X075	2
6	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X372	3
7	unused
8	unused
9	unused
10	unused
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X910F_1	5
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X910F_1	7
16	unused
17	unused
18	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X922M	13
19	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X922M	5
20	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X372	8
21	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X372	9
22	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X936M	2
23	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X936M	1
