X1138

Tesla Part Number
1100029-01-A
Connector
AMP 1-936119-1
Color
BK

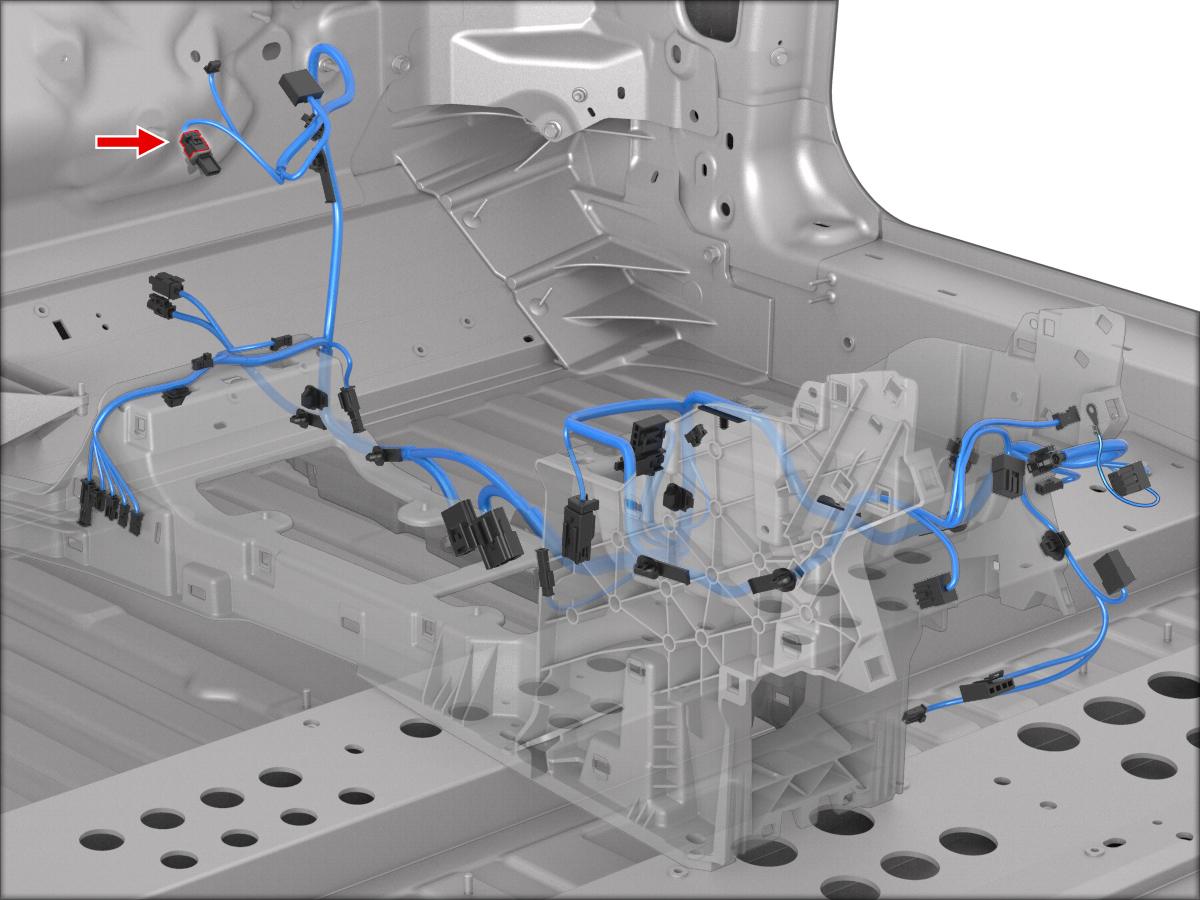

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X982M12
2AMP5-928999-10.63x0.63FYE/WH0.35X982M14
3AMP5-928999-10.63x0.63FYE0.35X982M15
4AMP5-928999-10.63x0.63FBK0.35
